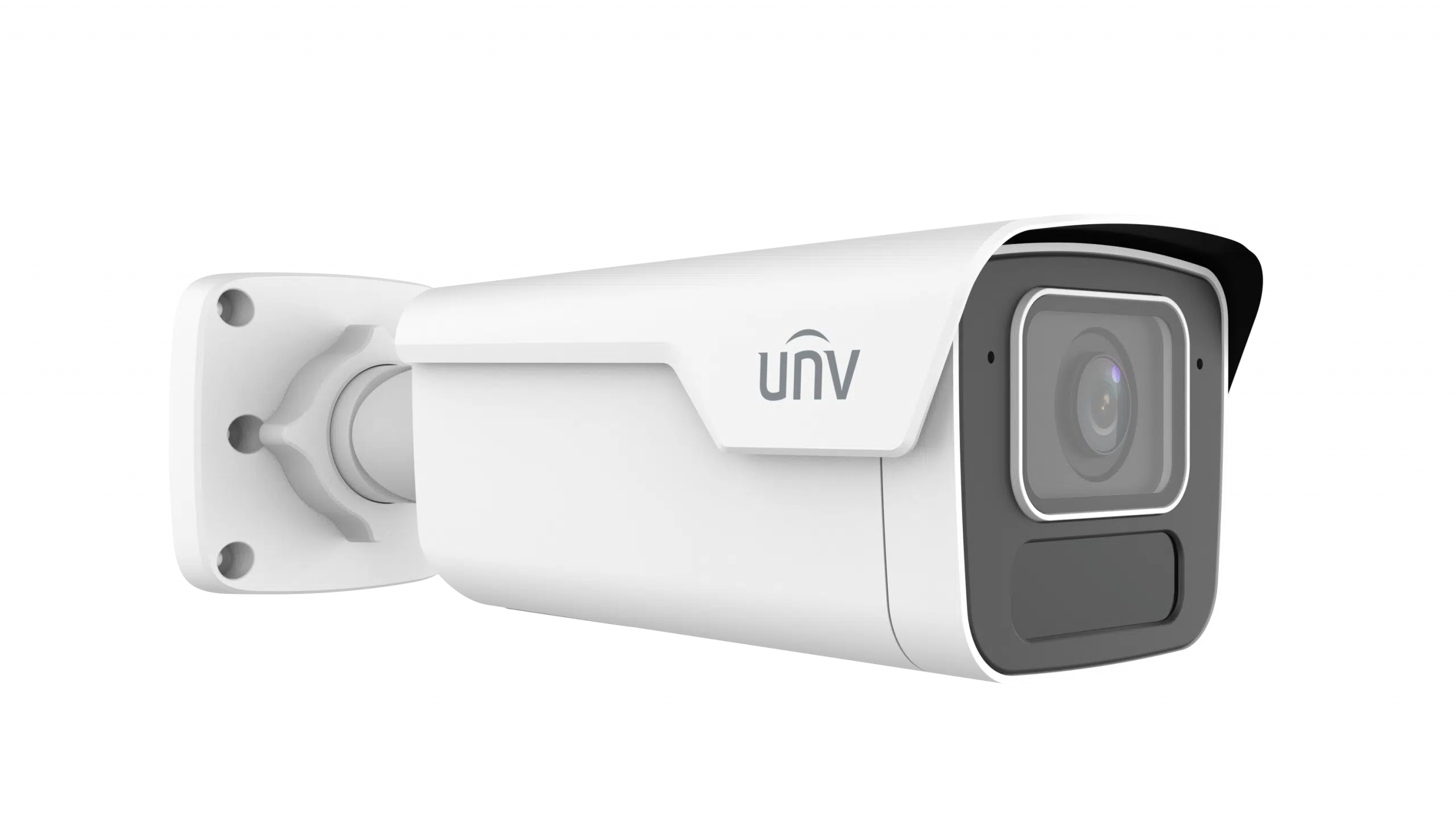

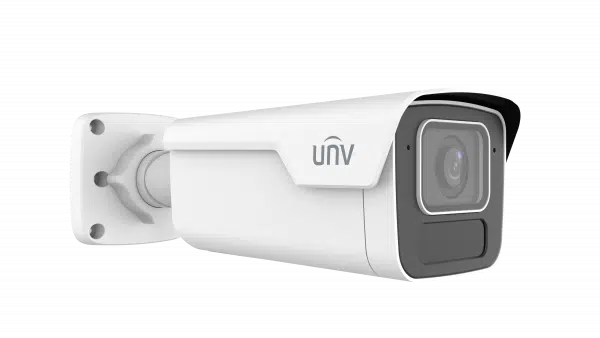

IPC2B24SA-AHDZK-PI-I1 |
| Camera |
| Max Resolution |
4 MP |
| Sensor |
1/2.8" CMOS |
| Min. Illumination |
Colour: 0.003 lux (F1.6, AGC ON)
0 lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 to 1/100000 s |
| WDR |
130 dB |
| Adjustment Angle |
Pan: 0° to 360°
Tilt: 0° to 90°
Rotate: 0° to 360° |
| S/N |
>56 dB |
| Lens |
| Focal Length |
2.7 to 13.5 mm |
| Optical Zoom |
5X |
| Iris |
F1.6 |
| Field of View (H) |
98.7° ~ 31° |
| Field of View (V) |
52.6° ~ 18° |
| Field of View (D) |
116.5° ~ 35.8° |
| Iris Type |
P-iris |
| DORI |
| DORI Distance (Lens) |
2.7 ~ 13.5 (mm) |
| DORI Distance (Detect) |
74.3m (243.6ft) ~ 229.5 m (753.0ft) |
| DORI Distance (Observe) |
29.7m (97.4ft) ~ 91.8m (301.2ft) |
| DORI Distance (Recognize) |
14.9m (48.7ft) ~ 45.9m (150.6ft) |
| DORI Distance (Identify) |
7.4m (24.4ft) ~ 23.0m (75.3ft) |
| Illuminator |
| Illumination Distance (IR) |
80 m (262 ft) |
| IR On/Off Control |
Auto/Manual |
| Video |
| Frame Rate-Main Stream |
4MP (2688*1520), Max 60fps |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Frame Rate-Sub Stream |
2MP (1920*1080), Max 60fps |
| Video Bit Rate |
128 Kbps to 16 Mbps |
| U-code |
Support |
| ROI |
Up to 8 areas |
| Privacy Mask |
Up to 8 areas (8 blacks / 8 mosaics) |
| Video Stream |
Triple Streams |
| OSD |
Up to 10 OSDs |
| Frame Rate-Third Stream |
D1 (720*576), Max 60fps |
| Image |
| White Balance |
Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction |
2D/3D DNR |
| Flip |
Flip Vertical, Flip Horizontal, Normal, 180°, 90° Clockwise, 90° Anti-clockwise |
| HLC |
Support |
| BLC |
Support |
| Defog |
Digital Defog |
| Intelligent |
| People Counting |
Support People Flow Counting and Crowd Density Monitoring |
| Smart Intrusion Prevention |
Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Events |
| Basic Detection |
Motion Detection, Audio Detection, Tampering Alarm, Ultra Motion Detection |
| General Function |
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output |
| Audio |
| Audio Compression |
G.711U, G.711A |
| Audio Bitrate |
128 Kbps |
| Two-way Audio |
Support |
| Suppression |
Support |
| Sampling Rate |
16 kHz |
| Storage |
| Edge Storage |
Micro SD, up to 512 GB |
| Network Storage |
ANR, NAS (NFS) |
| Network |
| Protocols |
SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host |
Up to 32 users. 3 user levels: administrator, common user and operator |
| Security |
TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client |
UNV-Link, UNV-Link Pro, EZStation |
| Web Browser |
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Interface |
| Audio I/O |
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O |
1/1 |
| Serial Port |
1 channel RS485 interface |
| Built-in Mic |
Built-in two mics |
| Built-in Speaker |
N/A |
| Network |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Certification |
| EMC |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)
FCC-SDoC (47 CFR Part15, Subpart B) |
| Safety |
CE LVD (EN IEC 62368-1)
UL (UL 62368-1) |
| Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection |
IP67 (IEC 60529)
IK10 (IEC 62262) |
| General |
| Power |
DC12V (±25%) , PoE (IEEE 802.3af) |
| Power Consumption |
Max 10W |
| Power Interface |
Ø5.5 mm coaxial power plug |
| Dimensions |
268 x 96 x 86 mm (10.5" x 3.7" x 3.4") (L x W x H) |
| Weight |
1kg (2.2lb) |
| Working Environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment |
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection |
6 KV |
| Reset Button |
Support |
| Heater |
N/A |
