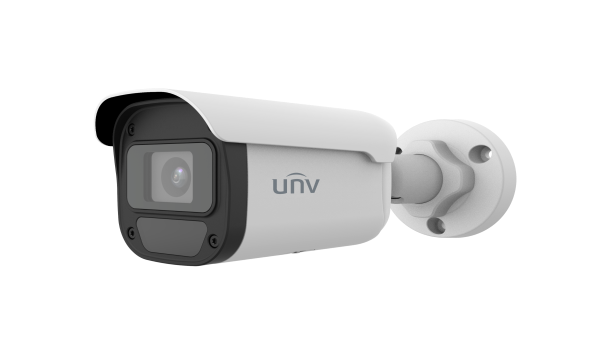

EC-B8F28M |
| Camera |
| Sensor |
1/2.7", 8.0 megapixel, progressive scan, CMOS |
| Minimum Illumination |
Colour: 0.01 lux (F1.6, AGC ON)
0Lux with IR on |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 90° |
Rotate: 0° ~ 360° |
| S/N |
>56dB |
| WDR |
120dB |
| Lens |
| Lens Type |
2.8mm @F1.6, Fixed-focal |
| Field of View (H) |
112.9° |
| Field of View (V) |
59.1° |
| Field of View (D) |
121.2° |
| DORI |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.8 |
63.0 |
25.2 |
12.6 |
6.3 |
| Illuminator |
| IR Range |
Up to 30m (98ft) IR range |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 8MP (3840*2160)@15fps ; 5MP (2880*1620)@25/20fps ;4MP (2560*1440)@25/20fps; 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps |
| Video Bit Rate |
128 Kbps~16384 kbps |
| Smart Encoding |
Supported |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 8 areas |
| Motion Detection |
Up to 4 areas |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Image Setting |
Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
| Digital noise reduction |
2D/3D DNR |
| Smart IR |
Supported |
| Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping |
N/A |
| HLC |
Supported |
| BLC |
Supported |
| Defog |
Digital Defog |
| Events |
| Behavior Detection |
Cross line, intrusion(based on human body detection) |
| Motion detection, tampering alarm, audio detection |
| General Function |
Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication |
| Audio |
| Audio Compression |
G.711A,G.711U |
| Suppression |
Supported |
| Sampling Rate |
8KHZ |
| Storage |
| Edge Storage |
Micro SD, up to 256GB |
| Network Storage |
NAS(NFS) |
| Network |
| Protocols |
IPV4, IPV6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL, TLS, SSH |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API , SDK |
| User/Host |
Up to 32 users. 2 user levels: administrator and common user |
| Security |
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
| Interface |
| Audio I/O |
N/A |
| Alarm I/O |
N/A |
| RS485 |
N/A |
| Built-in Mic |
Support |
| Built-in Speaker |
N/A |
| WIFI |
N/A |
| Network |
1 RJ45 10M/100M Base-TX Ethernet |
| Video Output |
N/A |
| Certification |
| EMC |
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety |
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection |
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 5.0W |
| Power Interface |
Ø 5.5mm coaxial power plug |
| Dimensions (L × W × H) |
165 × 63 × 62mm (6.5” × 2.5” × 2.5”) |
| Weight |
0.39kg (0.86lb) |
| Material |
Metal |
| Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection |
4KV |
| Reset Button |
N/A |
