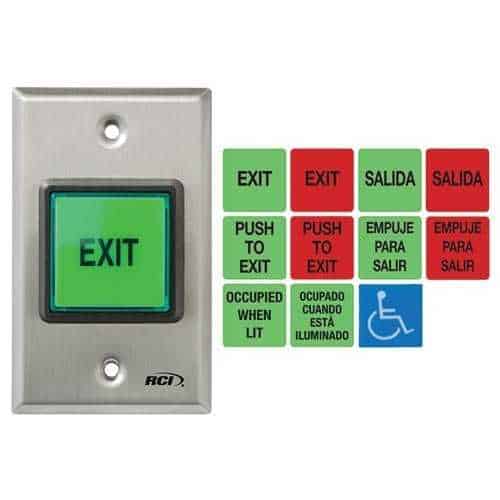

RCI 972 All-In-One Illuminated Pushbutton, Momentary, Includes English and
Large 2″ (51 mm) square illuminated LED pushbutton
Includes 3 messages, “Exitâ€, “Push to Exitâ€, and “OccupiedWhen Lit†in English/Spanish; and a Handicap symbol
Includes three colored lenses (green, red &
$46.49
Product Overview
RCI’s 972 Request to Exit Button makes it easy by combining three popular buttons in one box. The 972 is packaged with three lenses, and three messages so you are certain you have made the right selection with a 2″ (50.8mm) request to exit button. This 2″ (50.8mm) button is available with a long life incandescent or LED bulb. Now available with an optional 30 sec. fixed or adjustable delay timer.
Main Features
- Large 2″ (51 mm) square illuminated LED pushbutton
- Includes 3 messages, “Exit”, “Push to Exit”, and “OccupiedWhen Lit” in English/Spanish; and a Handicap symbol
- Includes three colored lenses (green, red & clear)
- Quickly mounts to single gang box
- Hardware kit includes stainless steel tamper-proof screws and spanner bit
- Momentary switch operation (SPDT)
- Integrated 30 sec. fixed or adjustable delay timer option available
- Brushed Stainless Steel (32D) faceplate
- All-in-one button, reduces inventory SKU’s
| Specifications | |||||||||||
| Part Number | 972-L-ES-MO-32D | Product Model | 972LESMO9 | Product Name | 972LESMO9 Push Button | Product Series | 9 | Product Type | Push Button | ||
| Technical Information | |||||||||||
| Gang Type | Single Gang | ||||||||||
| Physical Characteristics | |||||||||||
| Color | Silver | Height | 2.8" | Material | Stainless Steel | Product Color | Grey | Product Material | Stainless Steel | Width | 4.5" |
| Product Information | |||||||||||
| Print/Message | Occupied When Lit, Push To Exit | ||||||||||
| Warranty | |||||||||||
| Limited Warranty | 2 Year | ||||||||||
| Miscellaneous | |||||||||||
| Additional Information | Momentary switch operation | Package Contents | 972LESMO9 Push Button | ||||||||
| SPDT 10 amp contacts | 2 x #6-32 Stainless Steel Screws | ||||||||||
| 3 x Colored Lenses | |||||||||||
| 12/24 VDC Bulb | |||||||||||
| Weight | 10 lbs |
|---|
