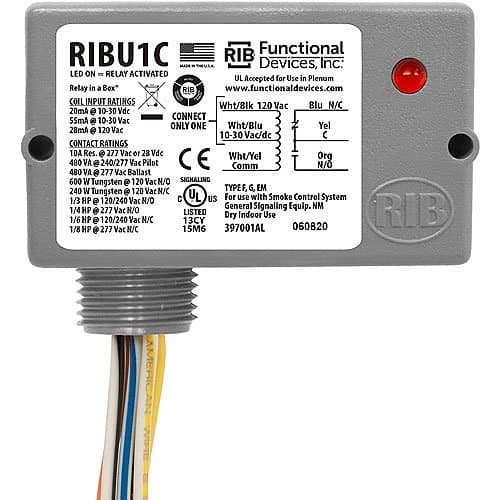

Functional Devices RIBU1C Enclosed Pilot Relay 10A SPDT with 10-30VAC/DC/120VAC
Relays Contact Type: One (1) SPDT Continuous Duty Coil
Expected Relay Life: 10 million cycles minimum mechanical
Operating Temperature: -30 to 140°
$33.40
Product Overview
Enclosed Pilot Relay 10 Amp SPDT with 10-30 Vac/dc/120 Vac Coil
Main Features
- Relays Contact Type: One (1) SPDT Continuous Duty Coil
- Expected Relay Life: 10 million cycles minimum mechanical
- Operating Temperature: -30 to 140° F
- Humidity Range: 5 to 95% (noncondensing)
- Operate Time: 1.8 Seconds
- Relay Status: LED On = Activated
- Dimensions: 1.70? x 2.80? x 1.50? with .50? NPT Nipple
- Wires: 16?, 600V Rated
- Approvals: UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE, RoHS
- Housing Rating: UL Accepted for Use in Plenum, NEMA 1
| Specifications | |||||||||
| Part Number | RIBU1C | Product Model | RIBU1C | Product Name | 10 AMP Pilot Control Relay | Product Type | Relay | ||
| Environmental Conditions | |||||||||
| Maximum Operating Temperature | 140°F (60°C) | Minimum Operating Temperature | -30°F (-34.4°C) | Relative Humidity | 5% - 95% | ||||
| Physical Characteristics | |||||||||
| Application/Usage | Alarm Control System | Depth | 1.5" | Form Factor | Screw Mount | Height | 1.7" | Width | 2.8" |
| Power Description | |||||||||
| Maximum Input Current | 20 A | Minimum Input Current | 10:00 AM | ||||||
| Product Information | |||||||||
| Contact Type | SPDT | ||||||||
| Miscellaneous | |||||||||
| Additional Information | Expected Relay Life: 10 million cycles minimum mechanical | Environmental Certification | RoHS, WEEE | Environmentally Friendly | Yes | Features | LED Indicator | ||
| Enclosed relay 10 amp SPDT with 10-30Vac/dc | |||||||||
| Operating Temperature: -30 to 140° F | |||||||||
| 120Vac coil | |||||||||
| Operate Time: 20ms | |||||||||
| Weight | 2 lbs |
|---|
