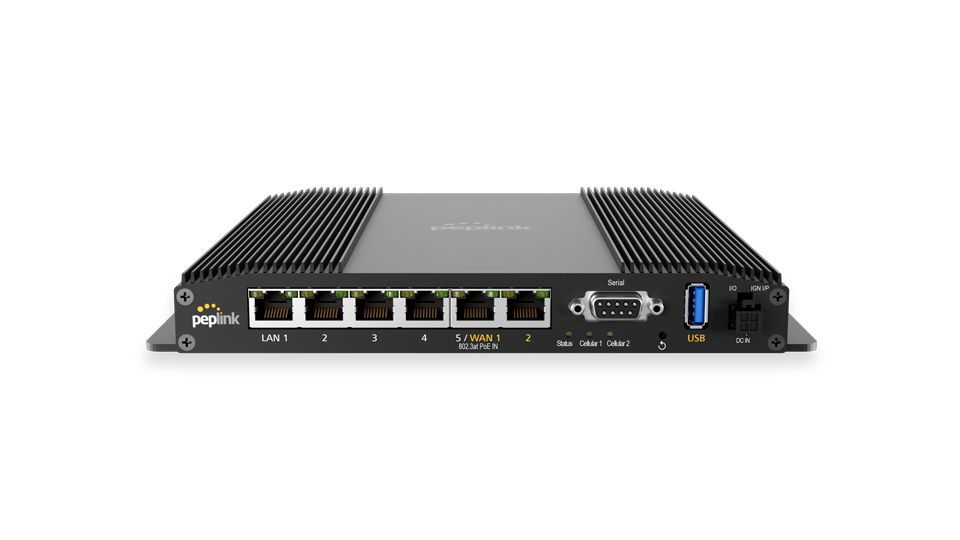

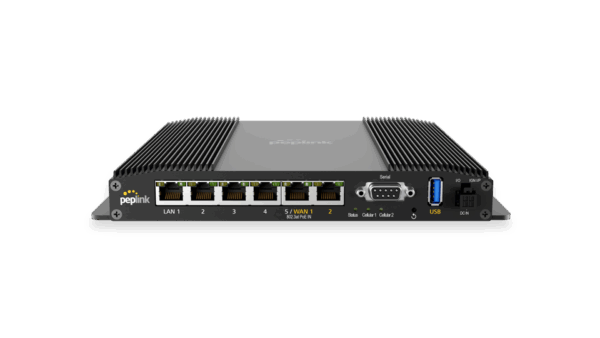

Peplink MAX-BR2-PRO-5GK-T-PRM

WAN Interface

• 2x 10/100/1000/2500M Ethernet

• 2x 5G Modems with Redundant SIM Slots

• 1x USB 3.0 Interface

LAN Interface

• 4x 10/100/1000M Ethernet

Wi-Fi Interface

• Simultaneous Dual-Band (2.4GHz / 5GHz)

• Wi-Fi 6, 2x2 MU-MIMO

• Wi-Fi WAN and/or AP

SpeedFusion Features

• Hot Failover

• Smoothing

• Bandwidth Bonding

Number of SpeedFusion VPN Peers

• 2 / 5 / 10 / 20 (depending on subscription/license)

Features

• Drop-in Mode

• Load Balancing / Failover

• Ignition Sensing

Router Throughput

• 1 Gbps

SpeedFusion VPN Throughput

• No Encryption: 400 Mbps

• 256-bit AES: 200 Mbps

Recommended Users

• 1–150

AP Controller

• Standard

Maximum Number of AP Supported

• 30 / 50 (depending on license/subscription)

Cellular Data Rate

• 5G: 4.1 Gbps / 900 Mbps (Downlink / Uplink)

• CAT-20: 2 Gbps / 211 Mbps

Antenna Connectors

• 8x SMA Cellular Antenna Connectors

• 2x RP-SMA Wi-Fi Antenna Connectors

• 1x SMA GPS Antenna Connector

Power Input

• AC Adapter: 100V–240V Input / 12V DC Output

• Power Port: 10V – 30V DC

• Passive PoE: 48–56V

• Power over Ethernet 802.3at

Power Consumption

• 12W (nominal) / 30W (max)

Dimensions

• 8.58 x 7.68 x 1.61 inches (218 x 195 x 29.5 mm)

Weight

• 2.42 lbs (1.1 kg)

Operating Environment

• Temperature: -40° – 149°F / -40° – 65°C

• Humidity: 15% – 95% (non-condensing)

Certifications

• FCC, CE, RoHS

• E-Mark (Motor Vehicle)

• EN 61373 Shock and Vibration Resistance

• EN 50155 Railway Applications

• EN 61000 Electromagnetic Compatibility

Package Contents

• 1x BR2 Pro

• 1x 12V 3A 4-Pin Power Supply (ACW-663)

• 8x LTE/5G Antennas (ACW-235)

• 2x Dual Band Wi-Fi Antennas (ACW-341)

• 1x GPS Antenna (ACW-232)

SIM Options

• Nano-SIM (4FF)

• Peplink eSIM

• BYO eSIM (2 profiles per modem)

• RemoteSIM via SIM Injector

• FusionSIM

Warranty

• 1-Year Limited Warranty
