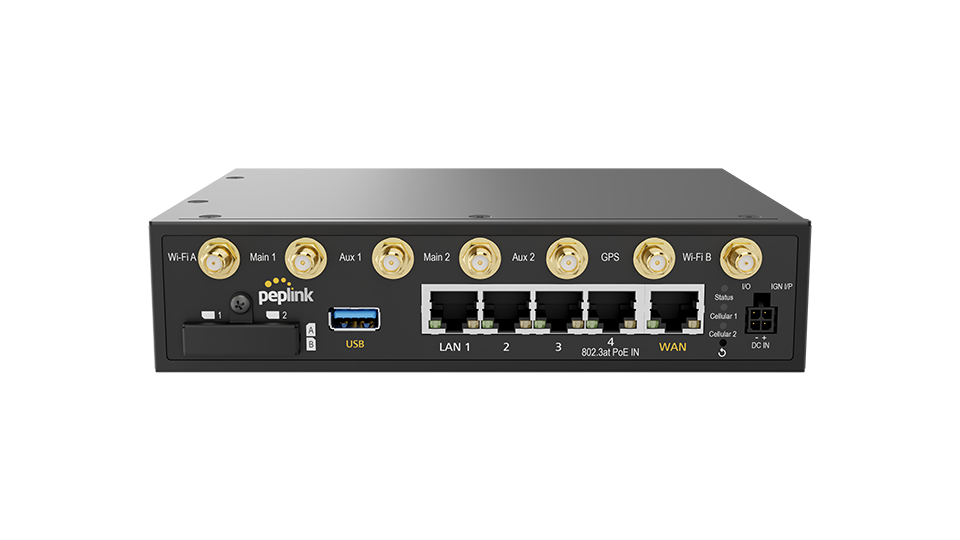

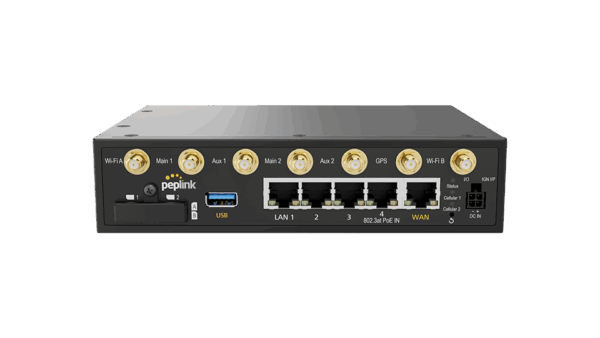

Peplink MAX-BR2-LTEA-US-T-PRM MAX BR2 Embedded LTE Modem (North America / CAT-7)

WAN Interface

• 1x 10/100/1000M Ethernet

• 2x Embedded Cellular Modems with Redundant SIM Slots

• 1x USB Interface

LAN Interface

• 4x 10/100/1000M Ethernet

Wi-Fi Interface

• Simultaneous Dual-Band (2.4GHz / 5GHz)

• Wi-Fi 5, 2x2 MIMO

• Wi-Fi WAN and/or AP

SpeedFusion Features

• Hot Failover

• Smoothing

• Bandwidth Bonding

Number of SpeedFusion VPN Peers

• 2 (default) / 5 (with subscription/license)

Router Throughput

• 300 Mbps

SpeedFusion VPN Throughput

• No Encryption: 80 Mbps

• 256-bit AES: 60 Mbps

Recommended Users

• 1–60

Cellular Data Rate

• CAT-4: 150 Mbps / 50 Mbps

• CAT-7: 300 Mbps / 150 Mbps

Antenna Connectors

• 4x SMA Cellular Antenna Connectors

• 2x RP-SMA Wi-Fi Antenna Connectors

• 1x SMA GPS Antenna Connector

Power Input

• Power Port: 12V – 30V DC

• AC Adapter: 100V–240V Input / 12V DC Output

• Terminal Block: 12V – 30V DC

• Power over Ethernet 802.3at

Power Consumption

• 8W (nominal) / 13W (max, without USB output)

Dimensions

• 6.89 x 5.12 x 1.61 inches (175 x 130 x 41 mm)

Weight

• 2.43 lbs (1.1 kg)

Operating Environment

• Temperature: -40° – 149°F / -40° – 65°C

• Humidity: 15% – 95% (non-condensing)

Certifications

• FCC, CE, RoHS

• EN 61000 Electromagnetic Compatibility

Package Contents

• 1x BR2

• 4x LTE Antennas (ACW-237)

• 2x Dual Band Wi-Fi Antennas (ACW-342)

• 1x GPS Active Antenna (ACW-232)

• 1x 12V 3A 4pin Power Supply

SIM Options

• Nano-SIM (4FF)

• Peplink eSIM

• BYO eSIM (2 profiles per modem)

• RemoteSIM via SIM Injector

• FusionSIM

Warranty

• 1-Year Limited Warranty
