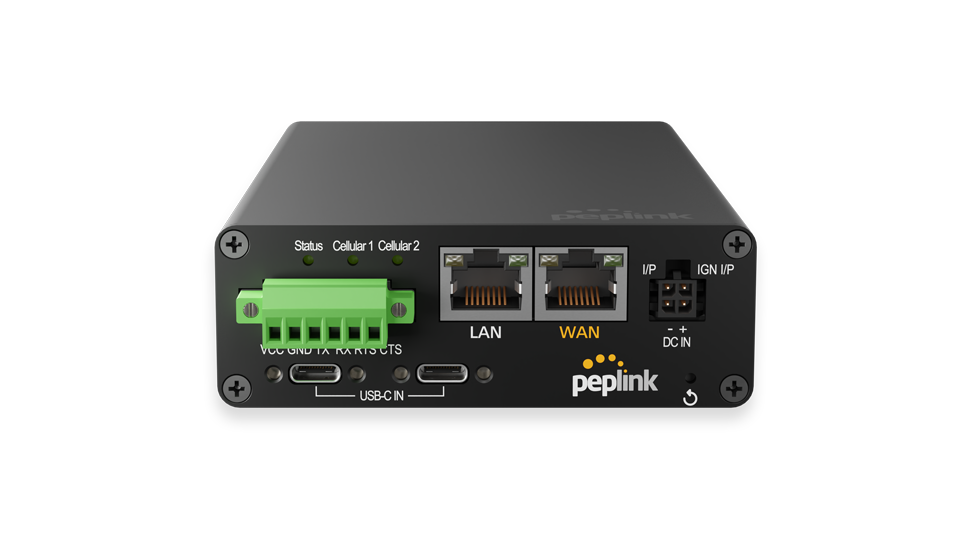

Peplink MAX-TST-PRO-DUO-LTEA-Q-T-PRM

WAN Interface

• 1x 10/100/1000M Ethernet

• 2x Embedded Cellular Modems with Redundant SIM Slots

LAN Interface

• 1x 10/100/1000M Ethernet

Wi-Fi Interface

• Simultaneous Dual-Band (2.4GHz / 5GHz)

• Wi-Fi 6, 2x2 MIMO

• Wi-Fi WAN and/or AP

SpeedFusion Features

• Hot Failover

• Smoothing

• Bandwidth Bonding

Number of SpeedFusion VPN Peers

• 2 / 5 / 10 / 20 (depending on subscription/license)

Features

• Edge Computing with 8GB Storage

• Ignition Sensing

Router Throughput

• 1 Gbps

SpeedFusion VPN Throughput

• No Encryption: 400 Mbps

• 256-bit AES: 200 Mbps

Recommended Users

• 25–150

Cellular Data Rate

• CAT-12: 600 Mbps / 150 Mbps

• CAT-7: 300 Mbps / 150 Mbps

Antenna Connectors

• 4x SMA Cellular Antenna Connectors

• 2x RP-SMA Wi-Fi Antenna Connectors

• 1x SMA GPS Antenna Connector

Power Input

• Power Port: 12V – 56V DC

• AC Adapter: 100V–240V Input / 12V DC Output

• 2x USB-C 20V, 3A each for Power Input

• Terminal Block: 12V – 56V DC

Power Consumption

• 10W (nominal) / 18W (max)

Dimensions

• 6.3 x 3.8 x 1.3 inches (160 x 97 x 33.5 mm)

Weight

• 1.61 lbs (730 g)

Operating Environment

• Temperature: -40° – 149°F / -40° – 65°C

• Humidity: 15% – 95% (non-condensing)

Certifications

• FCC, CE, RoHS, E-Mark

• EN 61373 Shock and Vibration Resistance

• EN 50155 Railway Applications – Electronic Equipment used on Rolling Stock

• EN 61000 Electromagnetic Compatibility

Package Contents

• 1x Transit Duo Pro

• 4x LTE Antennas (ACW-234)

• 2x Wi-Fi Dual Band Antennas (ACW-341)

• 1x GPS Active Antenna (ACW-232)

• 1x 12V 2A 4-Pin Power Supply (ACW-632)

• 1x 6-Pin Terminal Block Connector

• 1 Pair of Mounting Brackets (ACW-724)

SIM Options

• Nano-SIM (4FF)

• Peplink eSIM

• BYO eSIM (2 profiles per modem)

• RemoteSIM via SIM Injector

• FusionSIM

Warranty

• 1-Year Limited Warranty
