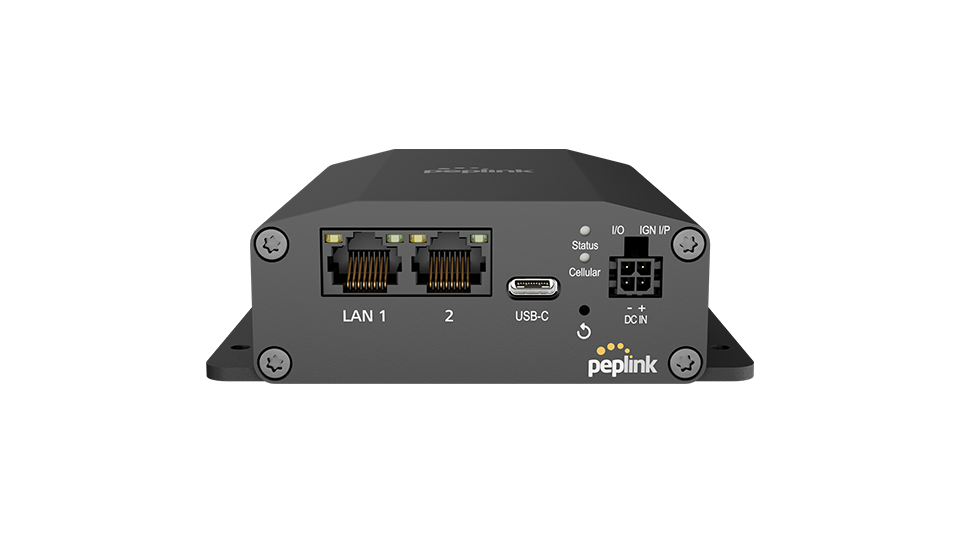

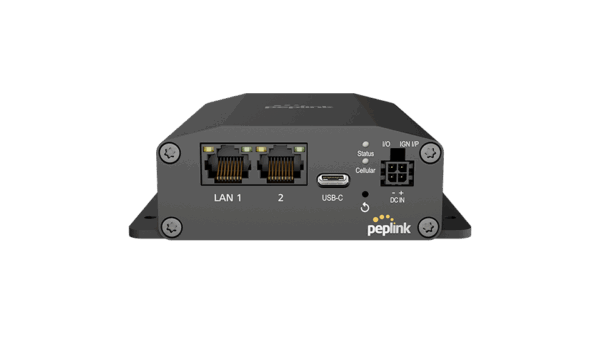

Peplink MAX-ADP-LTE-US-T-PRM

WAN Interface

• 1x Embedded Cellular Modem

LAN Interface

• 2x 10/100/1000M Ethernet

• 1x USB-C

Feature

• GPIO

• Ignition Sensing

Recommended Users

• 1–60

Cellular Data Rate

• CAT-4: 150 Mbps / 50 Mbps

Antenna Connectors

• 2x SMA Cellular Antenna Connectors

• 1x SMA GPS Antenna Connector

Power Input

• AC Adapter: 100V–240V Input / 12V DC Output

• Power Port: 9V – 36V DC

• USB-C Port: 5V 2A DC

Power Consumption

• 2.2W (nominal) / 5.7W (max)

Dimensions

• 5.0 x 4.2 x 1.4 inches (125.7 x 107 x 35 mm)

Weight

• 0.78 lbs (355 g)

Operating Environment

• Temperature: -22° – 149°F / -30° – 65°C

• Humidity: 15% – 95% (non-condensing)

Certifications

• FCC, CE, RoHS

• EN 61000 Electromagnetic Compatibility

Package Content

• 1x MAX Adapter

• 2x LTE Antennas (ACW-234)

• 1x GPS Active Antenna

• 1x 12V 2A 4-Pin Power Supply

SIM Options

• Nano-SIM (4FF)

• Peplink eSIM

• BYO eSIM (1 profile)

Warranty

• 1-Year Limited Warranty
