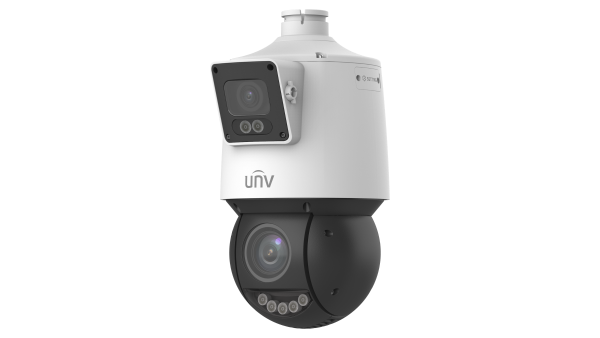

| IPC94144SFW-X25-F40C |
| Camera |
Panorama |
Detail |
| Sensor |
1/1.8", 4MP, CMOS |
1/2.7", 4MP, CMOS |
| Min. Illumination |
Color:0.0005 lux (F1.0, AGC ON)
0 lux with warm light |
Color:0.003 lux (F1.5, AGC ON)
0 lux with IR |
| Day/Night |
N/A |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| WDR |
120dB |
| S/N |
＞56dB |
| Lens |
| Lens type |
[email protected] |
[email protected],
AF automatic focusing and motorized zoom lens |
| Optical Zoom |
N/A |
25X |
| Iris |
Fixed aperture; F1.0 |
Auto; F1.5(W)~F3.8(T) |
| Field of View (H) |
94.9° |
55.46° ~ 3.09° |
| Field of View (V) |
51.5° |
32.94° ~ 1.73° |
| Field of View (D) |
116.7° |
68.22° ~ 3.65° |
| DORI |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 4 (Panorama) |
62.1 (203.6 ft) |
24.8 (81.5 ft) |
12.4 (40.7 ft) |
6.2 (20.4 ft) |
| 4.8 (Detail) |
123.8 (406.0 ft) |
49.5 (162.4 ft) |
24.8 (81.2 ft) |
12.4 (40.6 ft) |
| 120 (Detail) |
2475.0 (8120.1 ft) |
990.0 (3248.0 ft) |
495.0 (1624.0 ft) |
247.5 (812.0 ft) |
| Illuminator |
| IR Range |
N/A |
Up to 100m (328.1 ft) |
| Warm Light Range |
Up to 30m (98.4 ft) |
N/A |
| Wavelength |
N/A |
850nm (IR) |
| Light On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Frame Rate |
Main Stream: 4MP (2688*1520),Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; |
Main Stream: 4MP (2688*1520),Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; |
| Video Bit Rate |
128 Kbps ~ 16 Mbps |
| U-code |
Support |
| ROI |
Up to 8 areas |
| Video stream |
Triple streams |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 4 areas per scene |
24 areas, up to 4 areas per scene |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Flip Vertical/Flip Horizontal/180° |
| HLC |
Support |
| BLC |
Support |
| Defog |
Digital defog |
| Intelligent |
| Smart Intrusion Prevention |
Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection |
| People Counting |
Support people flow counting and crowd density monitoring |
| Linkage Function |
Support. Triggered by fixed lens via smart intrusion prevention function to track target |
N/A |
| Events |
| Basic Detection |
Motion detection, Audio detection, Tampering Alarm |
| Auto Tracking |
N/A |
Support |
| General Function |
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio |
| Audio Compression |
G.711U, G.711A |
| Audio Bitrate |
64 Kbps |
| Two-way Audio |
Support |
| Suppression |
Support |
| Sampling Rate |
8 kHz |
| Storage |
| Edge Storage |
Micro SD, up to 256 GB |
| Network Storage |
ANR, NAS(NFS) |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host |
Up to 32 users. 3 user levels: administrator, operator and common user |
| Security |
Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client |
EZStation
EZLive
EZView |
| Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Pan & Tilt |
| Pan Range |
N/A |
360° |
| Pan Speed |
N/A |
0.1°/s ~ 80°/s |
| Preset speed: N/A |
Preset speed: 80°/s |
| Tilt Range |
18° ± 5° |
-15° ~ 90° |
| Tilt Speed |
N/A |
0.1°/s ~ 80°/s |
| Preset speed: N/A |
Preset speed: 80°/s |
| Number of Presets |
1024 |
| Preset Patrol |
16 patrols, up to 64 presets for each patrol |
| Route Patrol |
16 patrols, up to 32 actions for each patrol |
| Recorded Patrol |
16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time |
15s~1800s |
| Preset Image Freeze |
N/A |
| Home Position |
Support |
| Interface |
| Audio I/O |
1/1 |
| Alarm I/O |
2/1 |
| Serial Port |
1 RS485 |
| Built-in Mic |
N/A |
| Built-in Speaker |
Support |
| Wi-Fi |
N/A |
| Network |
1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output |
N/A |
| Certification |
| EMC |
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety |
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection |
IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General |
| Power |
DC12V (±25%), PoE+(IEEE 802.3at) |
| Power consumption: MAX 24W |
| Power Interface |
Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) |
Φ163 x 304mm (Φ6.4” x 12.0”) |
| Weight |
2.27kg (5.00lb) |
| Working Environment |
-40℃ ~ +65℃(-40°F ~ +149°F)，Humidity: ≤95% RH (non-condensing) |
| Storage Environment |
-40℃ ~ +70℃(-40°F ~ +158°F)，Humidity: ≤95% RH (non-condensing) |
| Surge protection |
6KV |
| Reset button |
Support |
