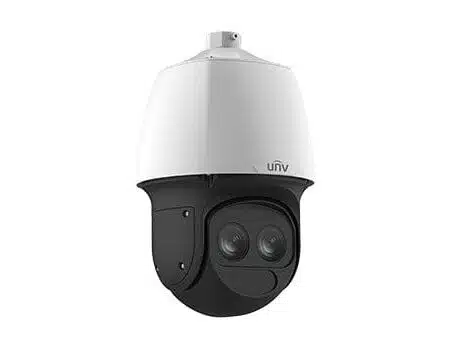

| IPC6652EL-X33-VF |
| Camera |
| Sensor |
1/2.8", 2.0 megapixel, progressive scan, CMOS |
| Minimum Illumination |
Colour: 0.001Lux (F1.5, AGC ON)
0Lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| WDR |
120dB |
| S/N |
>52dB |
| Lens |
| Lens type |
4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens |
| Digital Zoom |
16 |
| Optical Zoom |
33 |
| Iris |
Auto; F1.5 ~ F4.0 |
| Field of View (H) |
56.2° ~ 2.6° |
| Field of View (V) |
33.5° ~ 1.4° |
| Field of View (D) |
69.2° ~ 3.0° |
| DORI |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 4.5 |
72.9(239.3ft) |
29.2(95.7ft) |
14.6(47.9ft) |
7.3(23.9ft) |
| 148.5 |
2187.9(7178.3ft) |
875.2(2871.3ft) |
437.6(1435.7ft) |
218.8(717.8ft) |
| Illuminator |
| Vari-focal Laser |
Up to 500m(1640ft) |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Frame Rate |
Main Stream: 2MP (1920*1080), Max 60fps;
Sub Stream: 2MP (1920*1080), Max 60fps;
Third Stream: D1 (720*576), Max 60fps |
| Video Bit Rate |
128 Kbps~16 Mbps |
| U-code |
Support |
| ROI |
Up to 8 areas |
| Video stream |
Triple streams |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
24 areas, up to 4 areas per scene |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction |
2D/3D DNR |
| Flip |
Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| EIS |
N/A |
| HLC |
Support |
| BLC |
Support |
| Defog |
Digital Defog |
| Intelligent |
| Smart Intrusion Prevention |
Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
| People Counting |
Support people flow counting and crowd density monitoring |
| Events |
| Basic Detection |
Motion detection, Audio detection, Tampering Alarm |
| Auto Tracking |
Support |
| General Function |
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio |
| Audio Compression |
G.711U,G.711A |
| Audio Bitrate |
64 Kbps |
| Two-way audio |
Support |
| Suppression |
Support |
| Sampling Rate |
8 kHz |
| Storage |
| Edge Storage |
Micro SD, up to 256GB |
| Network Storage |
ANR,NAS(NFS) |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host |
Up to 32 users. 3 user levels: administrator, operator and common user |
| Security |
Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client |
EZStation
EZView
EZLive |
| Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Pan & Tilt |
| Pan Range |
360° (endless) |
| Pan Speed |
0.1°/s ~ 200°/s |
| Preset speed: 300°/s |
| Tilt Range |
-15° ~ 90° (auto reverse) |
| Tilt Speed |
0.1°/s ~ 200°/s |
| Preset speed: 240°/s |
| Number of Presets |
1024 |
| Preset Patrol |
16 patrols, up to 64 presets for each patrol |
| Route Patrol |
16 patrols, up to 32 actions for each patrol |
| Recorded Patrol |
16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time |
15s~1800s |
| Preset Image Freeze |
Support |
| Home Position |
Support |
| Interface |
| Audio I/O |
1/1 |
| Alarm I/O |
2/1 |
| Serial Port |
1 RS485 |
| Built-in Mic |
N/A |
| Built-in Speaker |
N/A |
| WIFI |
N/A |
| Network |
1 RJ45 10M/100M Base-TX Ethernet |
| Video output |
1 BNC |
| Certification |
| EMC |
CE-EMC (EN 55032:2015; EN 55024:2010+A1:2015; EN 61000-3-2:2014; EN 61000-3-3:2013)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Environment |
CE-ROHS (2011/65/EU;(EU)2015/863) |
| Protection |
IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General |
| Power |
AC 24V ±25%, DC 24V±25%, PoE (PSE Required) |
| Power consumption: Max 53W |
| Power Interface |
Wires with cold-pressed terminal |
| Dimensions (Ø x H) |
Ø227 x 385mm (Ø8.9" x 15.2") |
| Weight |
5.6kg(12.35lb) |
| Working Environment |
-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment |
-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection |
6KV |
| Reset Button |
Support |
