BEA’s LZRS600 Provides Four LASER-Based Curtains Offering a Three Dimensional Presence Detection Zone. This Sensor is Ideal for Perimeter Security Protection, Industrial Automation and Large Industrial Door / Gate Applications That Require a Wide Field of Detection

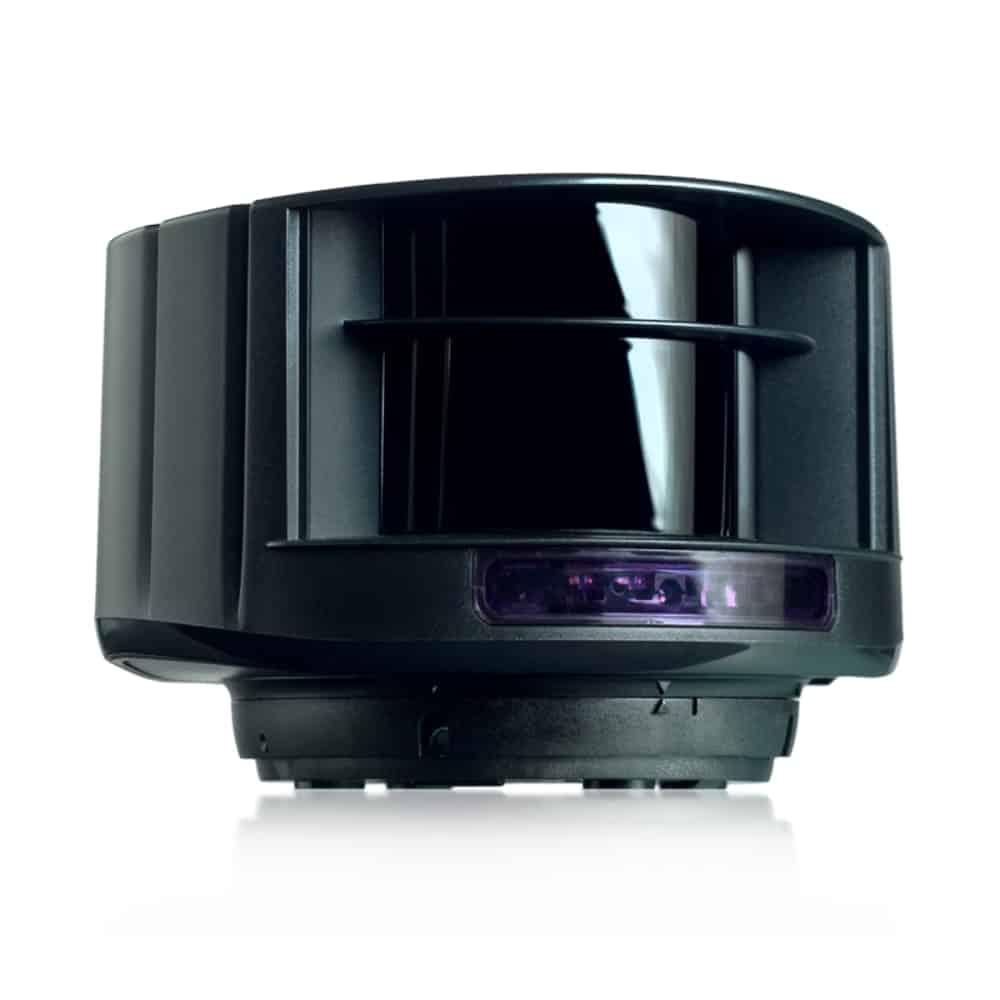

10LZRS600 BEA Motion Sensor
Presence Detection for Building Automation and Security
$2,113.64
This item: 10LZRS600 BEA Motion Sensor
$2,113.64
$2,113.64
| TECHNOLOGY | LASER scanner, Time-of-Flight measurement |
|---|---|
| DETECTION MODE | motion and presence |
| DETECTION RANGE | Default: 33’ x 33’ @ 2% remission factor (max. 82 ft x 82 ft) |
| ANGULAR RESOLUTION | 0.3516° |
| MIN. DETECTED OBJECT SIZE (TYP.) | 0.8 in @ 10 ft 1.4 in @ 16 ft 2.8 in @ 33 ft 6.9 in @ 82 ft |
| EMISSION CHARACTERISTICS IR LASER RED VISIBLE LASER | wavelength 905 nm; output power 0.10mW (CLASS 1) wavelength 635 nm; output power 0.95mW (CLASS 2) |
| SUPPLY VOLTAGE | 10 – 35 VDC @ sensor side |
| POWER CONSUMPTION | < 5 W |
| PEAK CURRENT AT POWER-ON | 1.8 A (Max. 80 ms @ 35 V) |
| CABLE LENGTH | 33’ |
| RESPONSE TIME | typ. 20 ms (max. 80 ms) + output activation delay |
| OUTPUT MAX. SWITCHING VOLTAGE MAX. SWITCHING CURRENT SWITCHING TIME OUTPUT RESISTANCE VOLTAGE DROP ON OUTPUT LEAKAGE CURRENT | 2 electronic relays (galvanic-isolated – polarity-free) 35 VDC / 24 VAC 80 mA (resistive) tON = 5 ms; tOFF = 5 ms typ 30 Ω < 0.7 V @ 20 mA < 10 μA |
| INPUT MAX. CONTACT VOLTAGE VOLTAGE THRESHOLD | 2 optocouplers (galvanic-isolated – polarity-free) 30 VDC (over-voltage protected) Log. Active High: > 8 VDC Log. Active Low: < 3 VDC |
| RESPONSE TIME MONITORING INPUT | < 5 ms |
| LED SIGNAL | 1 blue LED: power-on status 1 orange LED: error status 2 bi-colored LEDs: detection/output status (green = no detection, red = detection) |
| DIMENSIONS | 3 ⅝” × 2 ¾” × 5” (W × H × D) mounting bracket: + ½” |
| MATERIAL | PC / ASA |
| COLOR | Black |
| MOUNTING ANGLES ON BRACKET | -45°, 0°, 45° |
| ROTATION ANGLE ON BRACKET | -5 – 5° (lockable) |
| TILT ANGLE ON BRACKET | -3 – 3° |
| PROTECTION DEGREE | NEMA 4 / IP65 |
| TEMPERATURE RANGE | powered: -22 – 140 °F (-30 – 60 ºC) unpowered: 14 – 140 °F (-10 – 60 ºC) |
| HUMIDITY | 0 – 95% non-condensing |
| VIBRATIONS | < 2G |
| POLLUTION ON FRONT SCREENS | max. 30%, homogenous |
| NORM CONFORMANCE | 2006/95/EC: LVD; 2002/95/EC: RoHS; 2004/108/EC: EMC; IEC 60529:2001; IEC 60825-1:2007; IEC 60950- 1:2005; IEC 61000-6-2:2005; IEC 61000-6-3:2006 |
