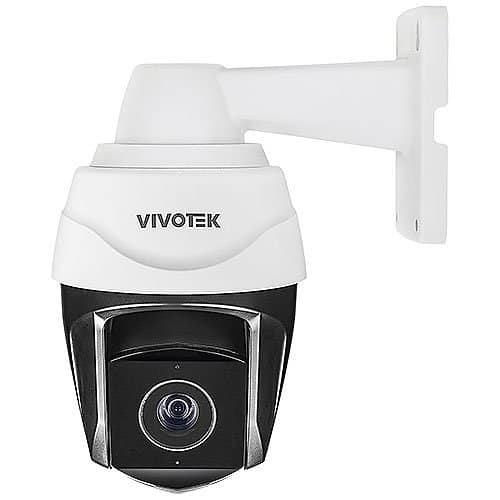

VIVOTEK SD9368-EHL S-Series 2MP WDR Speed Dome IP Camera with 40x Optical Zoom, White
60 fps at 1920×1080
40x Optical Zoom, Auto Focus
360° Continuous Pan, -20° to 90° (auto flip)
$2,932.49
Product Overview
The new VIVOTEK SD9368-EHL is a professional IR speed dome camera (PTZ) with 2MP resolution at 60fps, excellent for video surveillance in wide coverage areas such as airports, city surveillance, and manufacturing facilities. SD9368-EHL is equipped with 250M IR illuminators and a 40x optical zoom to gain more details in any scene. The smart IR technology allows broad coverage FOV and highly uniform IR intensity while at the same time avoiding hotspots.
Video surveillance in big areas has the potential for many incidents, SD9368-EHL’s built-in Smart Tracking Advanced (our latest AI technology for Smart VCA) allows user to identify the risk and track the suspected person automatically in real time.
SD9368-EHL’s camera body is protected with IP66, IK10 and NEMA 4X certifications against rain, dust, and corrosion. It also supports a wide operating temperature from -40? to 60? (-40°F to 140°F) for operation in extreme weather conditions.
Main Features
- 60 fps at 1920×1080
- 40x Optical Zoom, Auto Focus
- 360° Continuous Pan, -20° to 90° (auto flip) Tilt
- 250M IR with Smart IR
- Weather-proof IP66-rated, Vandal-proof IK10 and NEMA 4X-rated Housing
- (-40°C) ~ (60°C) Wide Temperature Range for Extreme Weather Conditions
- EIS (Electronic Image Stabilization) for Image Stability
- Trend Micro IoT Security
- Smart Tracking Advanced for Moving People with People-based Deep Learning Technology
| Specifications | |||||||||||||||||||||||
| Part Number | SD9368-EHL | NDAA Compliant | Yes | Product Model | SD9368-EHL | Product Name | SD9368-EHL Speed Dome Network Camera | Product Series | S | Product Type | Network Camera | ||||||||||||
| Technical Information | |||||||||||||||||||||||
| Connectivity Technology | Wired | Effective Camera Resolution | 2MP | Field of View | 65.70° ~ 1.88° (Horizontal), 39.39° ~ 1.09° (Vertical), 73.03° ~2.13° (Diagonal) | HD Recording | Yes | Lens Type | Varifocal | Maximum Aperture | f/4.95 | Maximum Frame Rate | 60 fps | Minimum Focal Length | 4.25 mm | Night Vision | Yes | Night Vision Type | Infrared | Number of IR LEDs | 8 | Optical Zoom | 40x |
| Camera | |||||||||||||||||||||||
| Night Vision Distance | 820.21 ft | Wide Dynamic Range | Yes | ||||||||||||||||||||
| Display & Graphics | |||||||||||||||||||||||
| Color Supported | Color | Maximum Video Resolution | 1600 x 1200 | ||||||||||||||||||||
| Environmental Conditions | |||||||||||||||||||||||
| Maximum Operating Temperature | 131°F (55°C) | Minimum Operating Temperature | -40°F (-40°C) | Operating Humidity | 98% | ||||||||||||||||||
| Exposure | |||||||||||||||||||||||
| Longest Shutter Speed | 1 Second | Shortest Shutter Speed | 1/100000 Second | ||||||||||||||||||||
| Interfaces/Ports | |||||||||||||||||||||||
| Network (RJ-45) | Yes | ||||||||||||||||||||||
| Lens | |||||||||||||||||||||||
| Focal Length | 4.25-170 mm | Lens Included | Yes | Maximum Focal Length | 170 mm | Minimum Aperture | f/1.6 | ||||||||||||||||
| Network & Communication | |||||||||||||||||||||||
| Remote Management | Yes | ||||||||||||||||||||||
| Physical Characteristics | |||||||||||||||||||||||
| Color | White | Color Family | White | Durability | Corrosion Resistant, Dust Resistant, Impact Resistant, Rain Resistant, Vandalproof, Waterproof, Weather Resistant, Weatherproof | Form Factor | PTZ | Product Color | White | Weight (Approximate) | 15.65 lb | ||||||||||||
| Power Description | |||||||||||||||||||||||
| Input Voltage | 24V AC, 48V DC | ||||||||||||||||||||||
| Product Information | |||||||||||||||||||||||
| Mount Type | Wall Mount | ||||||||||||||||||||||
| Projection Lens | |||||||||||||||||||||||
| Minimum Focal Length (mm) | 4.25 | ||||||||||||||||||||||
| Storage | |||||||||||||||||||||||
| Recording Formats | Full HD | Storage Type | Memory Card | ||||||||||||||||||||
| Video | |||||||||||||||||||||||
| Maximum Frame Rate (fps) | 60 | ||||||||||||||||||||||
| Warranty | |||||||||||||||||||||||
| Limited Warranty | 36 Month | ||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||
| Features | 3D Digital Noise Reduction, Auto Flip, Auto Tracking, Cross Line Detection, Day/Night, Defog, Face Detection, Mirror, Privacy Masking, Privacy Protection, Removable IR Cut-off Filter, Video Management System, White Balance, Wide Dynamic Range | Impact Protection Rating | IK10 | Ingress Protection Rating | IP66 | Package Contents | SD9368-EHL Speed Dome Network Camera | TAA Compliant | Yes | ||||||||||||||
| Weight | 16 lbs |
|---|
