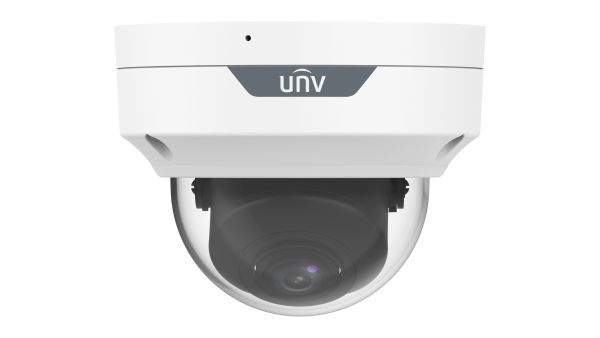

UAC-D315-ADPZMS |
| Camera |
| Max Resolution |
5 MP |
| Sensor Size |
1/2.7" CMOS |
| Min. Illumination |
0.005 lux (F1.6, AGC ON)
0 lux (IR on) |
| Lens |
| Focus |
2.8 to 12 mm |
| Lens Mount |
Φ14 |
| Angle of View (H) |
107.8° ~ 36.5° |
| Angle of View (V) |
58.5° ~ 20.5° |
| Angle of View (D) |
127.0° ~ 41.3° |
| Illuminator |
| Illuminator Number |
Two IR illuminators |
| Illumination Distance |
30m |
| Lifetime |
≥ 60000 hours |
| Video |
| Resolution |
5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V);
4MP: 2560(H)×1440(V)
1080P: 1920(H)×1080(V) |
| Frame Rate |
TVI: 5MP@20fps (default), 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
CVI: 5MP@25fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
CVBS: PAL, NTSC |
| Shutter Time |
PAL: 1/25 s-1/50000 s, NTSC: 1/30 s-1/50000 s |
| Image |
| Exposure Mode |
Four modes: Global (default), BLC, HLC, WDR |
| Day/Night |
Three modes: Auto (default), Day, Night |
| Digital Noise Reduction |
2D/3D |
| White Balance |
Two modes: Auto (default), Manual |
| WDR |
120 dB WDR |
| Smart IR |
Support |
| Flip |
Supports 180°horizontal flip, 180°vertical flip |
| Digital Defog |
N/A |
| Audio |
| Built-in Mic |
Support |
| Camera Audio |
CVI: 5MP@25fps,5MP@20fps, 4MP@25fps, 4MP@30fps,
* Audio function of the POC series camera is only available when the camera is used with our POC series XVRs. |
| Interface |
| Power Interface |
5.5 mm Power Interface |
| Video Output |
BNC, supports TVI/AHD/CVI/CVBS |
| Operating Environment |
| Temperature |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) |
| Humidity |
≤ 95% RH (non-condensing) |
| Surge Protection |
4 KV for power, 4 KV for video output interfaces |
| General |
| Power |
PoC |
| Power Consumption |
Max. 8.2 W |
| Mount |
Wall Mount, Pole Mount, Corner Mount, Pendant Mount |
| Dimensions |
Φ128 x 100mm (Ø5.0” x 3.9”) |
| Material |
Metal |
| Weight |
660g(1.46lb) |
| OSD Menu Language |
11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish |
| Certification |
| EMC |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) |
| Safety |
CE-LVD (EN 62368-1) |
| Environment |
CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) |
| Protection |
IP67 (IEC 60529), IK10 (IEC 62262) |
