• 2MP high quality image
• TVI/AHD/CVI/CVBS
• IR-cut filter with auto switch (ICR)
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• 3-Axis

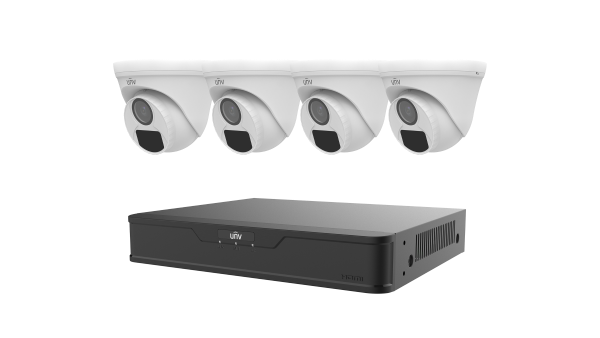

Uniview KIT/XVR301-04G3/4*UAC-T112-F28 1 Hard Disk 4-Channel DVR Kit(Including 4 PCS Analog Turret Camera)
$419.00
| UAC-T112-F28 | UAC-T112-F40 | |||||||
| Camera | ||||||||
| Max Resolution | 2 MP | |||||||
| Sensor Size | 1/3.0" CMOS | |||||||
| Min. Illumination | 0.02 lux (F2.0, AGC ON) 0 lux (IR on) | |||||||
| Lens | ||||||||
| Focus | 2.8 mm | 4.0 mm | ||||||
| Lens Mount | M12 | |||||||
| Angle of View (H) | 90.5° | 80.2° | ||||||
| Angle of View (V) | 49.6° | 40.7° | ||||||
| Angle of View (D) | 109.5° | 90.5° | ||||||
| Illuminator | ||||||||
| Illuminator Number | One IR illuminator | |||||||
| Illumination Distance | 20m | |||||||
| Lifetime | ≥ 60000 hours | |||||||
| Video | ||||||||
| Resolution | 1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V) | |||||||
| Frame Rate | TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC | |||||||
| Shutter Time | PAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s | |||||||
| Image | ||||||||
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR | |||||||
| Day/Night | Three modes: Auto (default), Day, Night | |||||||
| Digital Noise Reduction | 2D | |||||||
| White Balance | Two modes: Auto (default), Manual | |||||||
| WDR | DWDR | |||||||
| Smart IR | Support | |||||||
| Flip | Supports 180°horizontal flip, 180°vertical flip | |||||||
| Interface | ||||||||
| Power Interface | 5.5 mm Power Interface | |||||||
| Video Output | BNC, supports TVI/AHD/CVI/CVBS | |||||||
| Operating Environment | ||||||||
| Temperature | -30°C to 60°C (-22°F to 140°F) | |||||||
| Humidity | ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4 KV for power, 4 KV for video output interfaces | |||||||
| General | ||||||||
| Power | DC 12 V ± 25% | |||||||
| Power Consumption | MAX 2.88W | |||||||
| Mount | Wall Mount, Pole Mount, Corner Mount, Pendant Mount | |||||||
| Dimensions | Φ118mm*96mm (diameter*height) | |||||||
| Material | Plastic | |||||||
| Weight | 182g(0.401lb) | |||||||
| OSD Menu Language | 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) | |||||||
| Safety | CE-LVD (EN 62368-1) | |||||||
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) | |||||||
| Weight | 8 lbs |
|---|
