• Optional recess box for recess mount.
• Supports power output, which can be enabled or disabled on the Web interface.
• Built-in heating module supports operation at a very low temperature.
• Metal casing.
• Supports batch configuration.
• Supports call and intercom with the connected indoor stations and apps.
• Supports video monitoring, security alarm, and tamper alarm.
• Built-in IC card reader.

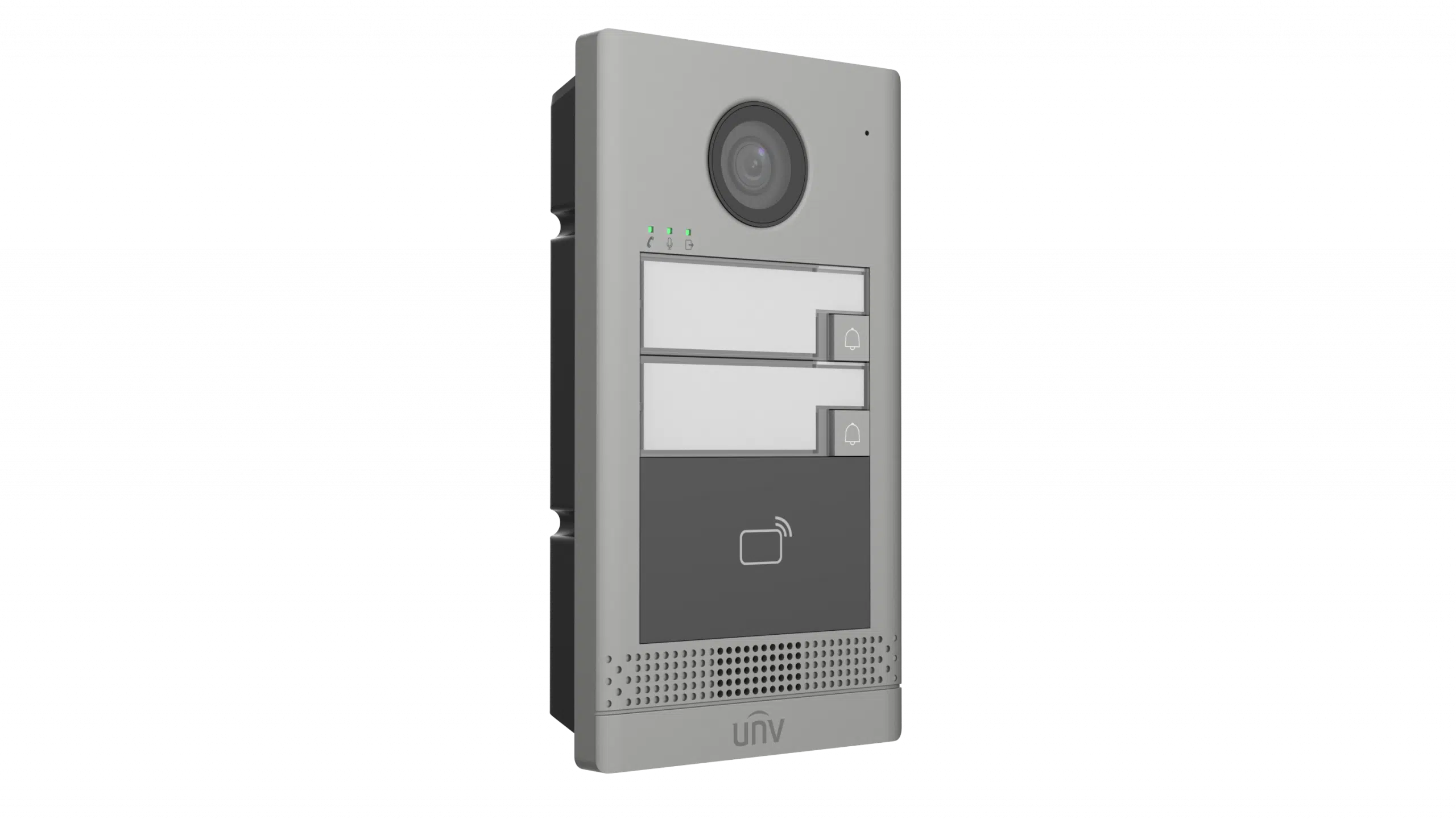

| OEU-202S-HMK2 | ||||||||
| Specification Index | ||||||||
| Card Capacity | 10000 | |||||||
| Maximum Connected Indoor Station | 20 | |||||||
| Basic Business | ||||||||
| WDR | Support DWDR | |||||||
| Protocol | Private protocol | |||||||
| Button | 2 x Call button | |||||||
| Hardware Specification | ||||||||
| FOV | Horizontal: 106.9° Vertical: 56.9° Diagonal: 127.9° | |||||||
| Power Consumption | PoE: 6.48W DC12V: 5.35W | |||||||
| Volume Adjustment | Support | |||||||
| Audio Compression Bitrate | 128Kbps | |||||||
| Audio Output | 1 x Built-in speaker | |||||||
| Audio Input | 1 x Built-in omnidirectional microphone | |||||||
| Audio Quality | Noise suppression, echo cancellation, AGC | |||||||
| Protection Level | IP65 (Apply waterproof glue to the gap between the device and the wall. See the corresponding quick guide for details) IK08 | |||||||
| Weight | 675g | |||||||
| Mount Method | Wall mount | |||||||
| Interface | Power*1, network port*1, RS485*1, Wiegand*1, IO input*4, door lock*2 (support electric lock/door magnet), tamper button*1 | |||||||
| Network | 100Mbps network port, supports IEEE802.3af PoE power supply | |||||||
| Dimensions (L x W x H) | 96mm*176mm*33mm | |||||||
| Power Supply | DC12V ±25%, IEEE802.3af PoE power supply | |||||||
| Operating Environment | -40°C to 60°C, 10% to 90%, noncondensing, outdoor | |||||||
| Operating System | Linux | |||||||
| Illuminator | IR light (adaptive) | |||||||
