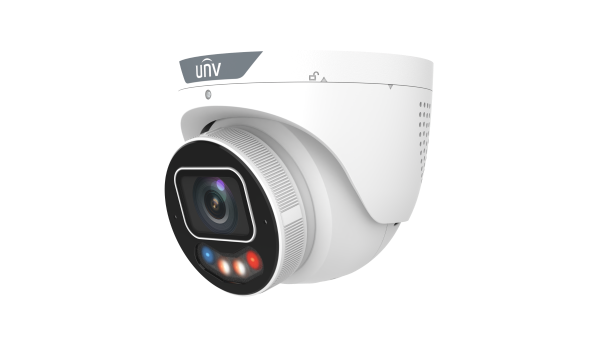

Uniview’s IPC3634SE-ADF28KMC-WP-I1 4MP Dual-Light Eyeball Warning Network Camera is a professional-grade, NDAA-compliant surveillance solution engineered for dependable outdoor monitoring with intelligent detection and full-color imaging. It features a 4 MP (2688 × 1520) 1/1.8″ CMOS sensor with an F1.0 large-aperture fixed 2.8 mm lens, delivering high-quality video up to 30 fps across multiple resolution options.
The camera leverages ColorHunter with Wise-ISP technology to ensure 24-hour full-color images, even in challenging low-light scenarios. Built-in intelligent perimeter protection includes cross-line, intrusion, enter/leave area detection along with intelligent intrusion prevention using target classification to distinguish humans, motor vehicles, and non-motor vehicles, reducing false alarms. Additional analytics such as people flow counting and crowd density monitoring, smart intrusion with color retrieval, and ASM (auto scene match) enhance situational awareness.
For illumination flexibility, the dual-light system integrates Smart IR and warm light up to 30 m (98.4 ft.), while 130 dB True WDR maintains clarity in scenes with strong contrast. The camera supports efficient compression (Ultra 265, H.265, H.264, MJPEG), 9:16 corridor mode, and MicroSD edge storage up to 512 GB for local recording redundancy.
Designed for demanding outdoor environments, the IPC3634SE-ADF28KMC-WP-I1 includes built-in dual mic and speaker, alarm and audio I/O, and robust protection with IP67 weatherproof, IK10 vandal resistance, and NEMA 4X ratings for long-term reliability.







| IPC3634SE-ADF28KMC-WP-I1 | IPC3634SE-ADF40KMC-WP-I1 | |||||||
| Camera | ||||||||
| Max Resolution | 4 MP | |||||||
| Sensor | 1/1.8" CMOS | |||||||
| Min. Illumination | Color: 0.0003 Lux (F1.0, AGC ON) | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° | |||||||
| S/N | > 56 dB | |||||||
| WDR | 130 dB | |||||||
| Lens | ||||||||
| Focal Length | 2.8 mm | 4.0 mm | ||||||
| Iris Type | Fixed | |||||||
| Iris | F1.0 | |||||||
| Field of View (H) | 111.0° | 96.2° | ||||||
| Field of View (V) | 61.4° | 52.6° | ||||||
| Field of View (D) | 133.0° | 115.9° | ||||||
| Lens Type | Fixed | |||||||
| DORI | ||||||||
| DORI Distance (Lens) | 2.8 mm | 4 mm | ||||||
| DORI Distance (Detect) | 43.4 m (142.4 ft.) | 62.1 m (203.7 ft.) | ||||||
| DORI Distance (Observe) | 17.4 m (57.1 ft.) | 24.8 m (81.4 ft.) | ||||||
| DORI Distance (Recognize) | 8.7 m (28.5 ft.) | 12.4 m (40.7 ft.) | ||||||
| DORI Distance (Identify) | 4.3 m (14.1 ft.) | 6.2 m (20.3 ft.) | ||||||
| Illuminator | ||||||||
| Supplemental Light | Dual light | |||||||
| Illumination Distance (IR) | 30 m (98.4 ft) | |||||||
| Illumination Distance (Warm Light) | 30 m (98.4 ft) | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Wavelength | 850 nm | |||||||
| Light On/Off Control | Auto/Manual | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate-Main Stream | 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps | |||||||
| Frame Rate-Sub Stream | 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps | |||||||
| Frame Rate-Third Stream | D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps | |||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Support | |||||||
| Video Stream | Triple streams | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Smart Illumination | Support | |||||||
| Auto Scene Match (ASM) | Support | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |||||||
| Dewarping | N/A | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital defog | |||||||
| Intelligent | ||||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| Statistical Analysis | N/A | |||||||
| People Counting | Support people flow counting and crowd density detection | |||||||
| Attribute Collection | SIP with color retrieval | |||||||
| Events | ||||||||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind | |||||||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 64 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8 kHz | |||||||
| Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Network | ||||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Client | EZStation, APP | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | |||||||
| Alarm I/O | 1/1 | |||||||
| Serial Port | N/A | |||||||
| Built-in Mic | Built-in dual-mic | |||||||
| Built-in Speaker | Support | |||||||
| WIFI | N/A | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Video Output | N/A | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) FCC (FCC 47 CFR part15 B) | |||||||
| Safety | CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |||||||
| Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) NEMA 4X | |||||||
| General | ||||||||
| Power | DC 12 V±25%, PoE (IEEE 802.3af) | |||||||
| Power Consumption | Max. 4.8 W | |||||||
| Power Interface | Ø5.5 mm coaxial power plug | |||||||
| Dimensions | Ø128.7 mm × 110.3 mm (Ø5.1" × 4.3" ) (Ø × H) | |||||||
| Weight | 0.82 kg (1.81 lb) | |||||||
| Material | Metal | |||||||
| Working Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Storage Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4 KV | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese | |||||||
