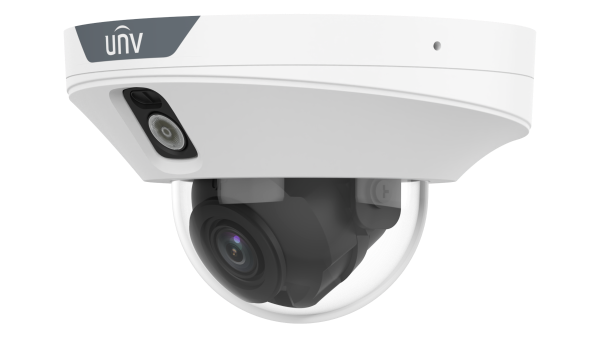

IPC312LP-ADF20KC-DL |
| Camera |
| Max Resolution |
2 MP |
| Sensor |
1/2.8" CMOS |
| Min. Illumination |
Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle |
Tilt: 0° to 68°, Rotate: 3° to 360° |
| S/N |
>52 dB |
| WDR |
120 dB |
| Lens |
| Focal Length |
2.0 mm |
| Iris Type |
Fixed |
| Iris |
F1.6 |
| Field of View (H) |
126° |
| Field of View (V) |
71.0° |
| Field of View (D) |
144.6° |
| Lens Type |
Fixed |
| DORI |
| DORI Distance (Lens) |
2 mm |
| DORI Distance (Detect) |
31.0 m (101.8 ft) |
| DORI Distance (Observe) |
12.4 m (40.7 ft) |
| DORI Distance (Recognize) |
6.2 m (20.4 ft) |
| DORI Distance (Identify) |
3.1 m (10.2 ft) |
| Illuminator |
| Supplemental Light |
IR |
| Illumination Distance (IR) |
10 m (32.8 ft) |
| Wavelength |
850 nm |
| IR On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile |
Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps
Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps |
| Video Bit Rate |
128 Kbps to 6144 Kbps |
| U-code |
Support |
| OSD |
Up to 6 OSDs (include two extra OSDs that only be used for elevator status display) |
| Privacy Mask |
Up to 4 areas |
| ROI |
Support |
| Video Stream |
Dual streams |
| Image |
| White Balance |
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Dewarping |
N/A |
| HLC |
Support |
| BLC |
Support |
| Defog |
Digital defog |
| Image Stabilization |
N/A |
| Intelligent |
| Smart Intrusion Prevention |
N/A |
| People Counting |
N/A |
| Statistical Analysis |
N/A |
| Elevator Entrance Detection |
Support (based on target classification: motorcycle and bicycle) |
| Events |
| Basic Detection |
Cross line (based on human body detection), Intrusion (based on human body detection), Motion detection, Ultra motion detection, Audio detection, Tampering alarm |
| Event for Elevator |
TOF tampering detection, Elevator status display: current floor, status: stop/down/up/speed, Temperature and humidity detection |
| General Function |
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| Audio |
| Audio Compression |
G.711U, G.711A |
| Audio Bitrate |
64 Kbps |
| Two-way Audio |
N/A |
| Suppression |
Support |
| Sampling Rate |
8 kHz |
| Storage |
| Edge Storage |
MicroSD, up to 512 GB |
| Network Storage |
ANR, NAS (NFS) |
| Network |
| Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration |
API, SDK, ONVIF (Profile S, Profile G, Profile T) |
| User/Host |
Up to 32 users. 3 user levels: administrator, common user and operator |
| Security |
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client |
EZStation, APP |
| Web Browser |
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface |
| Audio I/O |
1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O |
1/1 |
| Serial Port |
N/A |
| Built-in Mic |
Support |
| Built-in Speaker |
Support |
| WIFI |
N/A |
| Network |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output |
N/A |
| Certification |
| EMC |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)
FCC (FCC 47 CFR part15 B) |
| Safety |
CE LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| General |
| Power |
DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption |
Max. 5.5 W |
| Power Interface |
Ø5.5 mm coaxial power plug |
| Dimensions |
Ø100.0 mm × 68.7 mm (Ø3.9" × 2.7") (Ø × H) |
| Weight |
0.25 kg (0.55 lb) |
| Material |
Plastic |
| Working Environment |
-10 ℃ to 40 ℃ (14 ℉ to 104 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment |
-10 ℃ to 40 ℃ (14 ℉ to 104 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection |
4 KV |
| Reset Button |
Support |
| Web Client Language |
4 Languages: English, Russian, Spanish, Vietnamese |
