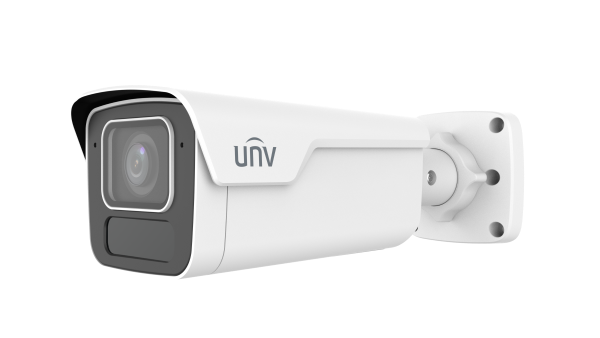

IPC2B28SA-ADZK-PI-I2A |
| Camera |
| Max Resolution |
8 MP |
| Sensor |
1/1.8" CMOS |
| Min. Illumination |
Color: 0.001 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 to 1/100000 s |
| WDR |
130 dB |
| S/N |
> 56 dB |
| Lens |
| Focal Length |
2.7 to 13.5 mm |
| Optical Zoom |
5X |
| Iris |
F1.2 |
| Field of View (H) |
104.7° to 49.1° |
| Field of View (V) |
56.4° to 27.9° |
| Field of View (D) |
128.8° to 60.4° |
| Iris Type |
P-iris |
| DORI |
| DORI Distance (Lens) |
2.7 to 13.5 mm |
| DORI Distance (Detect) |
98.6 m to 209.9 m (323.3 ft. to 688.7 ft) |
| DORI Distance (Observe) |
39.4 m to 84.0 m (129.3 ft. to 275.5 ft) |
| DORI Distance (Recognize) |
19.7 m to 42.0 m (64.7 ft. to 137.7 ft) |
| DORI Distance (Identify) |
9.9 m to 21.0 m (32.3 ft. to 68.9 ft) |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate |
128 Kbps to 16 Mbps |
| U-code |
Support |
| ROI |
Up to 8 areas |
| Video Stream |
Five streams |
| Privacy Mask |
Up to 8 areas (8 blacks/ 8 mosaics) |
| OSD |
Up to 8 OSDs |
| Frame Rate-Main Stream |
8 MP (3840 × 2160), max. 30 fps |
| Frame Rate-Sub Stream |
1080P (1920 × 1080), max. 30 fps |
| Frame Rate-Third Stream |
D1 (720 × 576), max. 30 fps |
| Intelligent |
| Exception Detection |
Object removed, Object Left Behind, Scene change, Defocus detection |
| Smart Intrusion Prevention |
Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting |
Support people flow counting and crowd density monitoring |
| Traffic Monitoring |
Support capturing car license picture and collect other car information when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode avaliable: High/Low pole |
| Image |
| White Balance |
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance |
| EIS |
Support |
| Digital Noise Reduction |
2D/3D DNR |
| Flip |
Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Defog |
Digital defog |
| Events |
| Basic Detection |
Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| General Function |
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| UMD (Ultra Motion Detection) |
Support |
| Audio |
| Audio Compression |
G.711U, G.711A |
| Audio Bitrate |
128 Kbps |
| Two-way Audio |
Support |
| Suppression |
Support |
| Sampling Rate |
8 kHz, 16 kHz |
| Storage |
| Edge Storage |
MicroSD, up to 512 GB |
| Network Storage |
ANR, NAS (NFS) |
| Network |
| Protocols |
IGMP, SMTP, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, IPv4, RTP, RTCP, RTMP |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host |
Up to 32 users. 3 user levels: administrator, common user and operator |
| Security |
TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client |
UNV-Link, UNV-Link Pro, EZStation |
| Web Browser |
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Illuminator |
| Illumination Distance (IR) |
80 m (262.5 ft) |
| IR On/Off Control |
Auto/Manual |
| Wavelength |
850 nm |
| Interface |
| Audio I/O |
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O |
1/1 |
| Serial Port |
1 × RS485 |
| Built-in Mic |
Built-in dual-mic |
| Network |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Certification |
| EMC |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)
FCC-SDoC (47 CFR Part15, Subpart B) |
| Safety |
CE-LVD (EN IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment |
CE-RoHS (2011/65/EU;(EU)2015/863)
WEEE (2012/19/EU) |
| Protection |
IP67 (IEC 60529)
IK10 (IEC 62262) |
| General |
| Power |
DC 12 V (±25%), PoE (IEEE 802.3af) |
| Power Consumption |
Max. 12.5 W |
| Power Interface |
Ø5.5 mm coaxial power plug |
| Dimensions |
268 mm × 96 mm × 82 mm (10.5" × 3.7" × 3.2") (L × W × H) |
| Weight |
1 kg (2.2 lb) |
| Working Environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment |
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection |
6 KV |
| Configurable |
| P/N |
Support |
