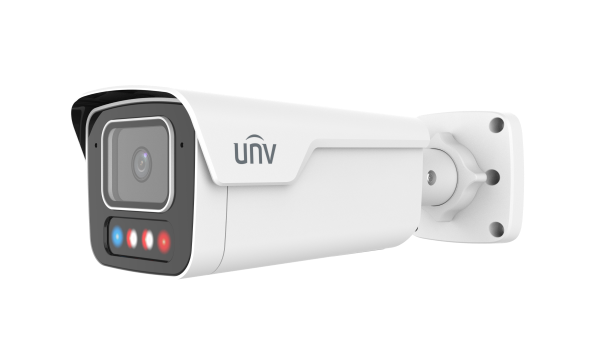

Uniview’s IPC2B14SE-ADF40KMC-WP-I1 4MP Dual-Light Bullet Warning Network Camera is a professional-grade, NDAA-capable outdoor bullet camera designed for reliable surveillance with smart detection and extended low-light visibility.
It’s built around a 4 MP, 1/1.8″ CMOS sensor that captures clear high-resolution video up to 2688 × 1520, with additional support for 2560 × 1440, 2304 × 1296, and 1080 P streams to balance detail and bandwidth.
The camera uses Ultra 265, H.265, H.264, and MJPEG compression to optimize storage efficiency and supports ColorHunter with Wise-ISP technology for vibrant 24-hour full-color imaging even in low-light conditions. Intelligent perimeter protection analytics—including cross line, intrusion, enter/leave area detection—enhance situational awareness by focusing alerts on relevant behaviors while reducing false positives.
Designed for outdoor environments, the IPC2B14SE-ADF40KMC-WP-I1 integrates dual-light technology with both Smart IR and warm white light for effective illumination in darkness. It also includes a built-in microphone and speaker for audio capture and deterrence functions. MicroSD edge storage up to 512 GB offers local redundancy, and the rugged housing delivers IP67 weather protection and IK10 vandal resistance for dependable long-term performance in challenging conditions.
| IPC2B14SE-ADF28KMC-WP-I1 | IPC2B14SE-ADF40KMC-WP-I1 | |||||||
| Camera | ||||||||
| Max Resolution | 4 MP | |||||||
| Sensor | 1/1.8" CMOS | |||||||
| Min. Illumination | Color: 0.0003 Lux (F1.0, AGC ON) | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° | |||||||
| S/N | > 56 dB | |||||||
| WDR | 130 dB | |||||||
| Lens | ||||||||
| Focal Length | 2.8 mm | 4.0 mm | ||||||
| Iris Type | Fixed | |||||||
| Iris | F1.0 | |||||||
| Field of View (H) | 111.0° | 96.2° | ||||||
| Field of View (V) | 61.4° | 52.6° | ||||||
| Field of View (D) | 133.0° | 115.9° | ||||||
| Lens Type | Fixed | |||||||
| DORI | ||||||||
| DORI Distance (Lens) | 2.8 mm | 4 mm | ||||||
| DORI Distance (Detect) | 43.4 m (142.4 ft.) | 62.1 m (203.7 ft.) | ||||||
| DORI Distance (Observe) | 17.4 m (57.1 ft.) | 24.8 m (81.4 ft.) | ||||||
| DORI Distance (Recognize) | 8.7 m (28.5 ft.) | 12.4 m (40.7 ft.) | ||||||
| DORI Distance (Identify) | 4.3 m (14.1 ft.) | 6.2 m (20.3 ft.) | ||||||
| Illuminator | ||||||||
| Supplemental Light | Dual light | |||||||
| Illumination Distance (IR) | 40 m (131.2 ft) | |||||||
| Illumination Distance (Warm Light) | 40 m (131.2 ft) | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Wavelength | 850 nm | |||||||
| Light On/Off Control | Auto/Manual | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate-Main Stream | 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps | |||||||
| Frame Rate-Sub Stream | 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps | |||||||
| Frame Rate-Third Stream | D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps | |||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Support | |||||||
| Video Stream | Triple streams | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Smart Illumination | Support | |||||||
| Auto Scene Match (ASM) | Support | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |||||||
| Dewarping | N/A | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital defog | |||||||
| Intelligent | ||||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| Statistical Analysis | N/A | |||||||
| People Counting | Support people flow counting and crowd density monitoring | |||||||
| Attribute Collection | SIP with color retrieval | |||||||
| Events | ||||||||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind | |||||||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 64 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8 kHz | |||||||
| Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Network | ||||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Client | EZStation, APP | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | |||||||
| Alarm I/O | 1/1 | |||||||
| Serial Port | N/A | |||||||
| Built-in Mic | Built-in dual-mic | |||||||
| Built-in Speaker | Support | |||||||
| WIFI | N/A | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Video Output | N/A | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) FCC (FCC 47 CFR part15 B) | |||||||
| Safety | CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |||||||
| Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) NEMA 4X | |||||||
| General | ||||||||
| Power | DC 12 V±25%, PoE (IEEE 802.3af) | |||||||
| Power Consumption | Max. 4.8 W | |||||||
| Power Interface | Ø5.5 mm coaxial power plug | |||||||
| Dimensions | 265.2 mm × 95.2 mm × 82.9 mm (10.4" × 3.7" × 3.3" ) (L × W × H) | |||||||
| Weight | 0.92 kg (2.03 lb) | |||||||
| Material | Metal + Plastic | |||||||
| Working Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Storage Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4 KV | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese | |||||||
