| Specifications |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Part Number |
OMNI900LCD |
Packaged Quantity |
1 |
Product Line |
OmniSmart |
Product Model |
OMNI900LCD |
Product Name |
OmniSmart OMNI900LCD 900 VA Tower UPS |
Product Type |
Line-interactive UPS |
|
|
|
|
| Technical Information |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Hot Swappable |
Yes |
Output Voltage |
120V AC |
Receptacle Detail |
8 x NEMA 5-15R |
Receptacle Type |
NEMA 5-15R |
Transfer Time |
3 ms |
|
|
|
|
|
|
| Battery Information |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Battery Life |
6 Year |
Typical Battery Recharge Time |
20-Hour |
|
|
|
|
|
|
|
|
|
|
|
|
| Controls/Indicators |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Status Indicators |

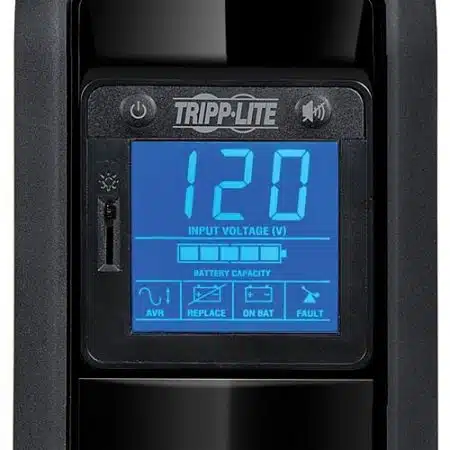

Front panel LCD screen with blue backlight offers: |
|
|
|
|
|
|
|
|
|
|
|
|
|
Continuous input line voltage data, Battery charge level, Battery power status, UPS status information on line power status, Voltage regulation operation |
|
|
|
|
|
|
|
|
| Environmental Conditions |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Maximum Operating Temperature |
122°F (50°C) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Management |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Alarm |
AC Input Failure |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Physical Characteristics |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Color |
Black |
Color Family |
Black |
Depth |
7.2" |
Form Factor |
Tower |
Height |
11.8" |
Product Color |
Black |
Weight (Approximate) |
14.90 lb |
Width |
3.7" |
| Power Description |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Input Voltage |
110V AC |
Plug/Connector Type |
NEMA 5-15P |
Surge Energy Rating |
870 J |
Waveform Type |
Pulse-width Modulated Sine Wave |
|
|
|
|
|
|
|
| Software |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Software Included |
PowerAlert Software |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Warranty |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Limited Warranty |
2-Year |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Miscellaneous |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Environmental Certification |
RoHS |
Environmentally Friendly |
Yes |
Package Contents |

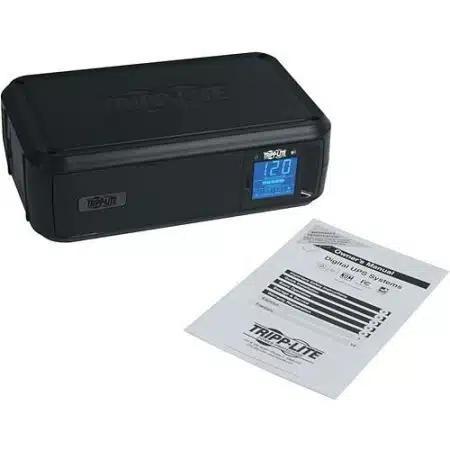

OmniSmart OMNI900LCD 900 VA Tower UPS |
|
Manual with Warranty Information
