Main Features
- 19-” rackmount ready, 1U height ( 1.75″ )
- EIA/TIA 2/32 spacing
- 110 type punchdown termination
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

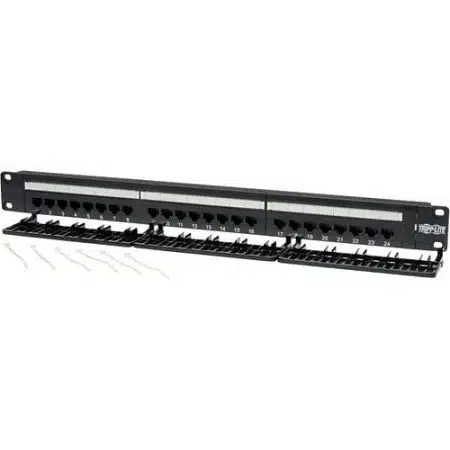

Tripp Lite N252-024 24-Port 1U Rack-Mount CAT6/CAT5 110 Patch Panel, 568B, RJ45 Ethernet, 19″ Rackmount Ready,
19-” rackmount ready, 1U height ( 1.75″ )
EIA/TIA 2/32 spacing
110 type punchdown
$89.58
| Specifications | |||||||||||||||||||||||
| Part Number | N252-024 | Product Model | N252-024 | Product Name | 24 Port Cat6 Network Patch Panel | Product Type | Network Patch Panel | ||||||||||||||||
| Technical Information | |||||||||||||||||||||||
| Material | Metal | ||||||||||||||||||||||
| Audio | |||||||||||||||||||||||
| Shipping Weight (Approximate) (g) | 589.67 | ||||||||||||||||||||||
| Interfaces/Ports | |||||||||||||||||||||||
| Number of Network (RJ-45) Ports | 24 | Number of RJ-11 Ports | 24 | Total Number of Ports | 24 | ||||||||||||||||||
| Physical Characteristics | |||||||||||||||||||||||
| Color | Black | Compatible Rack Unit | 1U | Compatible Rack Width | 19" | Form Factor | Rack Mount | Material | Metal | Shipping Depth | 4.25" | Shipping Depth (mm) | 107.95 | Shipping Height | 2.20" | Shipping Height (mm) | 55.88 | Shipping Weight (Approximate) | 1.30 lb | Shipping Width | 20.50" | Shipping Width (mm) | 520.7 |
| Warranty | |||||||||||||||||||||||
| Limited Warranty | Lifetime | ||||||||||||||||||||||
| Miscellaneous | |||||||||||||||||||||||
| Additional Information | Color coded label on back offers both EIA/TIA 568A & 568B wiring | Environmental Certification | RoHS | Environmentally Friendly | Yes | TAA Compliant | Yes | ||||||||||||||||
| Ports clearly numbered both on front and back | |||||||||||||||||||||||
| Labels on front enable each port to be named | |||||||||||||||||||||||
| Metal frame | |||||||||||||||||||||||
| Weight | 15 lbs |
|---|
