TRENDnet TPE-TG82ES 8-Port Gigabit EdgeSmart PoE+ Switch,
ETHERNET PORT CONFIGURATION: 8 x Gigabit PoE+ ports.

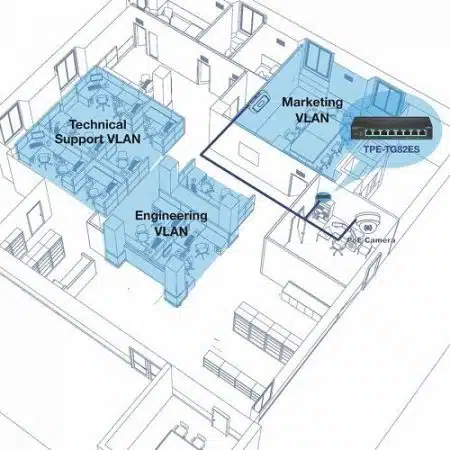

EDGESMART NETWORK MANAGEMENT: Provides an easy-to-use web-based management interface for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment.The web-based management interface offers features for loopback detection, RSTP, static link aggregation, VLAN, IGMP Snooping, and QoS
INTEGRATION FLEXIBILITY: Managed features include loopback detection, RSTP, static link aggregation,
$137.16
Main Features
- ETHERNET PORT CONFIGURATION: 8 x Gigabit PoE+ ports.
- EDGESMART NETWORK MANAGEMENT: Provides an easy-to-use web-based management interface for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment.The web-based management interface offers features for loopback detection, RSTP, static link aggregation, VLAN, IGMP Snooping, and QoS
- INTEGRATION FLEXIBILITY: Managed features include loopback detection, RSTP, static link aggregation, VLAN,
- IGMP Snooping, and QoS for flexible network integration.
- PoE+ POWER: A 64W PoE power budget supplies up to eight Power over Ethernet devices.
- MONITORING SOLUTIONS: SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions
- COMPACT FANLESS DESIGN: With a fanless compact and lightweight metal housing design, this switch is well-suited for desktop and wall mount installations TRENDnet LIFETIME PROTECTION: Lifetime TRENDnet Manufacturer Warranty
- NDAA / TAA compliant (U.S. and Canada only)
Specifications | |||||||||||||||
Part Number | TPE-TG82ES | NDAA Compliant | Yes | Product Condition | New | Product Line | EdgeSmart | Product Model | TPE-TG82ES | Product Name | 8-Port Gigabit EdgeSmart PoE+ Switch (61W) | Product Series | TPE | Product Type | Ethernet Switch |
Technical Information | |||||||||||||||
Media Type Supported | Twisted Pair | Network Switch Type | Managed | Power Consumption | 68.60W | ||||||||||
I/O Expansions | |||||||||||||||
Shared SFP Slot | No | ||||||||||||||
Interfaces/Ports | |||||||||||||||
Modular | No | Port/Expansion Slot Details | 8 x Gigabit Ethernet Network | Stack Port | No | Total Number of Network Ports | 8 | Uplink Port | No | ||||||
Management & Protocols | |||||||||||||||
Manageable | Yes | ||||||||||||||
Media & Performance | |||||||||||||||
Network Technology | 1000Base-T | ||||||||||||||
Network & Communication | |||||||||||||||
Ethernet Technology | Gigabit Ethernet | Layer Supported | 2 | Networking Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x | ||||||||||
Physical Characteristics | |||||||||||||||
Depth | 8" | Form Factor | Wall Mount | Height | 4" | Material | Metal | Weight (Approximate) | 2.53 lb | Width | 6" | ||||
Power Description | |||||||||||||||
Frequency | 50 Hz|60 Hz | Input Voltage | 100-240V AC | PoE (RJ-45) Port | No | PoE Budget | 64W | Power Source | PoE+ | Redundant Power Supply Supported | No | ||||
Product Information | |||||||||||||||
Length | 6.7" | ||||||||||||||
Warranty | |||||||||||||||
Limited Warranty | Lifetime | ||||||||||||||
Miscellaneous | |||||||||||||||
Environmentally Friendly | Yes | Package Contents | Power adapter (54V DC, 1.67A), Quick Installation Guide, TPE-TG82ES | TAA Compliant | Yes |
Weight | 2.53 lbs |
---|
