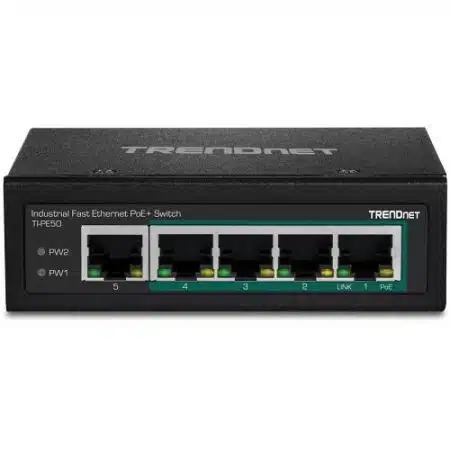

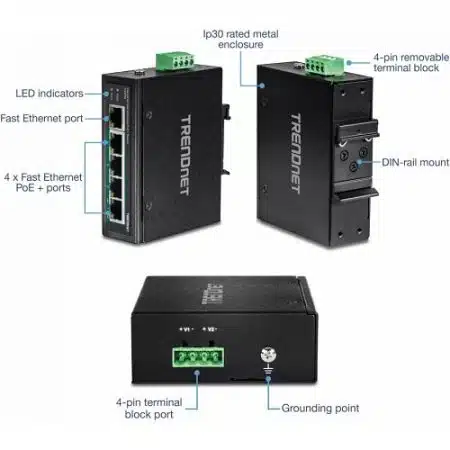

4 x Fast Ethernet PoE+ ports
1 x Fast Ethernet port
Power supply sold separately (model:
$160.02
Buy Now| Specifications | |||||||||||||||
| Part Number | TI-PE50 | NDAA Compliant | Yes | Product Condition | New | Product Line | Industrial | Product Model | TI-PE50 | Product Name | 5-Port Industrial Fast Ethernet PoE+ DIN-Rail Switch | Product Series | TI | Product Type | Ethernet Switch |
| Technical Information | |||||||||||||||
| Media Type Supported | Twisted Pair | Power Consumption | 2.24W | ||||||||||||
| I/O Expansions | |||||||||||||||
| Shared SFP Slot | No | ||||||||||||||
| Interfaces/Ports | |||||||||||||||
| Modular | No | Port/Expansion Slot Details | 1 x Fast Ethernet Network, 4 x Fast Ethernet PoE+ | Stack Port | No | Total Number of Network Ports | 5 | Uplink Port | No | ||||||
| Management & Protocols | |||||||||||||||
| Manageable | Yes | ||||||||||||||
| Media & Performance | |||||||||||||||
| Network Technology | 10/100Base-T | ||||||||||||||
| Network & Communication | |||||||||||||||
| Ethernet Technology | Fast Ethernet | Layer Supported | 2 | Networking Standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x | ||||||||||
| Physical Characteristics | |||||||||||||||
| Depth | 10" | Form Factor | DIN Rail Mount, Wall Mount | Height | 3" | Material | Metal | Weight (Approximate) | 1.37 lb | Width | 5" | ||||
| Power Description | |||||||||||||||
| Input Voltage | 12-56V DC | PoE (RJ-45) Port | No | PoE Budget | 90W | Power Source | Power Supply | Redundant Power Supply Supported | Yes | ||||||
| Product Information | |||||||||||||||
| Length | 4.1" | ||||||||||||||
| Warranty | |||||||||||||||
| Limited Warranty | Lifetime | ||||||||||||||
| Miscellaneous | |||||||||||||||
| Environmentally Friendly | Yes | Package Contents | DIN-Rail / wall mount kit, Quick Installation Guide, Removable terminal block, TI-PE50 | TAA Compliant | Yes | ||||||||||
| Weight | 2 lbs |
|---|
