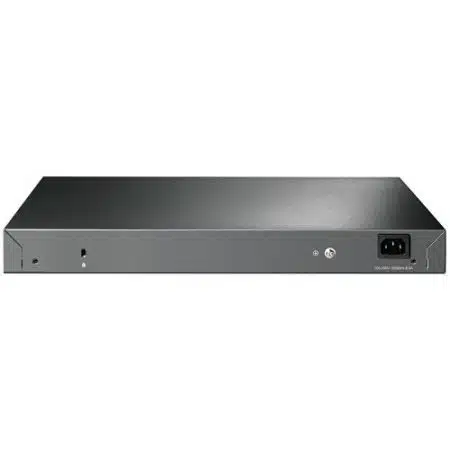

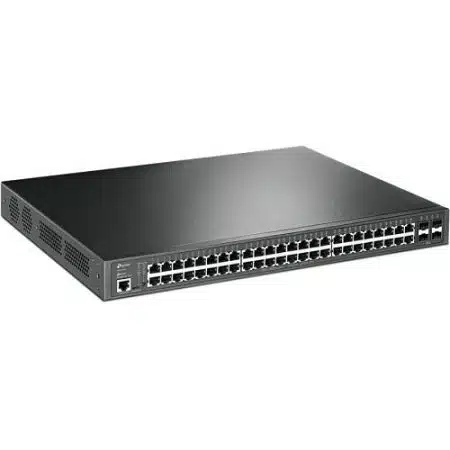

TP-Link TL-SG3452P JetStream 52-Port Gigabit L2 Managed Switch, 384W,
Flexible Full Gigabit 52-Port PoE Configuration
Integrated into Omada SDN
Cloud
$817.44
Product Overview

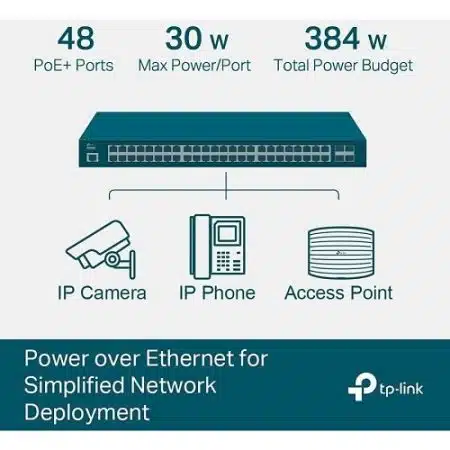

Flexible Full Gigabit 52-Port PoE Configuration, 48× PoE+ (802.3at/af) 10/100/1000Mbps RJ45 ports providing up to 30W per port and total PoE power budget of 384W, together w/ 4× Gigabit SFP slots for high-speed connections, Integrated into Omada SDN.
Main Features
- Flexible Full Gigabit 52-Port PoE Configuration
- Integrated into Omada SDN
- Cloud Access
- SDN Compatibility
- Enhance Network Security
- L2+ Features, Static Routing helps route internal traffic for more efficient use of network resources
- Standalone Management
- Limited Lifetime Protection
| Specifications | |||||||||||||||
| Part Number | SG3452P | Product Line | JetStream | Product Model | TL-SG3452P | Product Name | JetStream TL-SG3452P Ethernet Switch | Product Type | PoE, Managed | ||||||
| Technical Information | |||||||||||||||
| Media Type Supported | Optical Fiber, Twisted Pair | Power Consumption | 52.50W | ||||||||||||
| I/O Expansions | |||||||||||||||
| Expansion Slot Type | SFP (mini-GBIC) | Number of SFP Slots | 4 | Number of Total Expansion Slots | 4 | ||||||||||
| Interfaces/Ports | |||||||||||||||
| Modular | Yes | Network (RJ-45) | Yes | Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot, 48 x Gigabit Ethernet PoE+ | Total Number of Network Ports | 48 | ||||||||
| Management & Protocols | |||||||||||||||
| Manageable | Yes | ||||||||||||||
| Media & Performance | |||||||||||||||
| Network Technology | 10/100/1000Base-T, 1000Base-X | ||||||||||||||
| Network & Communication | |||||||||||||||
| Ethernet Technology | Gigabit Ethernet | Layer Supported | 3 | Networking Standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x | ||||||||||
| Physical Characteristics | |||||||||||||||
| Depth | 13" | Depth (mm) | 330.2 | Form Factor | Desktop Mount, Rack Mount | Height | 1.7" | Height (mm) | 43.18 | Product Material | Metal | Width | 17.3" | Width (mm) | 439.42 |
| Power Description | |||||||||||||||
| Frequency | 50 Hz|60 Hz | Frequency (Hz) | 50, 60 | Input Voltage | 120V AC, 230V AC | PoE (RJ-45) Port | Yes | PoE Budget | 384W | PoE Budget (W) | 384 | Power Consumption (W) | 52.5 | Power Source | Power Supply |
| Warranty | |||||||||||||||
| Limited Warranty | 5-year | ||||||||||||||
| Miscellaneous | |||||||||||||||
| Environmental Certification | RoHS | Environmentally Friendly | Yes | Features | Zero-Touch Provisioning (ZTP) | Package Contents | JetStream TL-SG3452P Ethernet Switch | TAA Compliant | No | ||||||
| Weight | 2 lbs |
|---|
