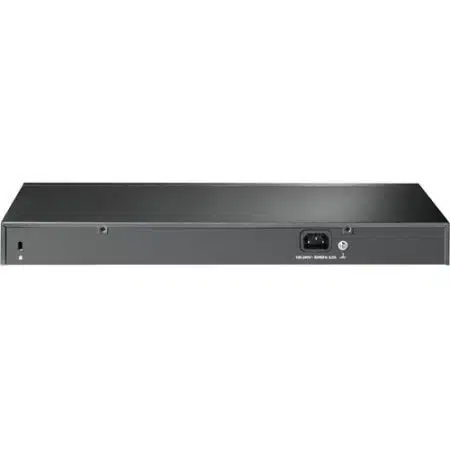

TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port
24 10/100/1000 Mbps RJ45 PoE+ ports switch with 2 Ethernet copper and 2 SFP fiber uplink ports
PoE power budget is up to 250W, making it ideal for small to medium business surveillance systems
Priority Mode helps to guarantee the quality of sensitive application like video
$359.33
Main Features
- 24 10/100/1000 Mbps RJ45 PoE+ ports switch with 2 Ethernet copper and 2 SFP fiber uplink ports
- PoE power budget is up to 250W, making it ideal for small to medium business surveillance systems
- Priority Mode helps to guarantee the quality of sensitive application like video monitoring
- PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
- QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
- Intelligent power management can protect the switch from overload
| Specifications | |||||||||||||
| Part Number | TL-SG1428PE | Product Line | EasySmart | Product Model | TL-SG1428PE | Product Name | 28-Port Gigabit Easy Smart Switch with 24-Port PoE+ | Product Type | PoE, Unmanaged | ||||
| Technical Information | |||||||||||||
| Media Type Supported | Optical Fiber, Twisted Pair | Power Consumption | 27W | ||||||||||
| Environmental Conditions | |||||||||||||
| Operating Temperature (T-T) | 32-122°F | ||||||||||||
| I/O Expansions | |||||||||||||
| Expansion Slot Type | SFP (mini-GBIC) | Number of SFP Slots | 2 | Number of Total Expansion Slots | 2 | Shared SFP Slot | No | ||||||
| Interfaces/Ports | |||||||||||||
| Modular | Yes | Network (RJ-45) | Yes | Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot, 2 x Gigabit Ethernet Network, 24 x Gigabit Ethernet PoE+ | Total Number of Network Ports | 28 | Uplink Port | Yes | ||||
| Management & Protocols | |||||||||||||
| Manageable | Yes | ||||||||||||
| Media & Performance | |||||||||||||
| Network Technology | 1000Base-T, 1000Base-X | ||||||||||||
| Network & Communication | |||||||||||||
| Ethernet Technology | Gigabit Ethernet | Layer Supported | 2 | Networking Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x | ||||||||
| Physical Characteristics | |||||||||||||
| Compatible Rack Unit | 1U | Depth | 8.7" | Form Factor | Desktop Mount, Rack Mount | Height | 1.7" | Material | Metal | Product Material | Metal | Width | 17.3" |
| Power Description | |||||||||||||
| Frequency | 50 Hz|60 Hz | Input Voltage | 100V AC, 240V AC | PoE (RJ-45) Port | Yes | PoE Budget | 250W | Power Source | Power Supply | ||||
| Warranty | |||||||||||||
| Limited Warranty | 3-Year | ||||||||||||
| Miscellaneous | |||||||||||||
| Environmental Certification | RoHS | Environmentally Friendly | Yes | Features | 24x 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2x Ethernet Copper and 2x SFP Fiber Uplink Ports, Intelligent Power Management Can Protect the Switch from Overload, PoE Auto Recovery Enables System Self Healing, PoE Power Budget, QoS is for Smooth Internet Surfing Experience | Package Contents | 28-Port Gigabit Easy Smart Switch with 24-Port PoE+ | TAA Compliant | No | ||||
| Power Cord | |||||||||||||
| Installation Guide | |||||||||||||
| Rackmount Kit | |||||||||||||
| Rubber Feet | |||||||||||||
| Weight | 12 lbs |
|---|
