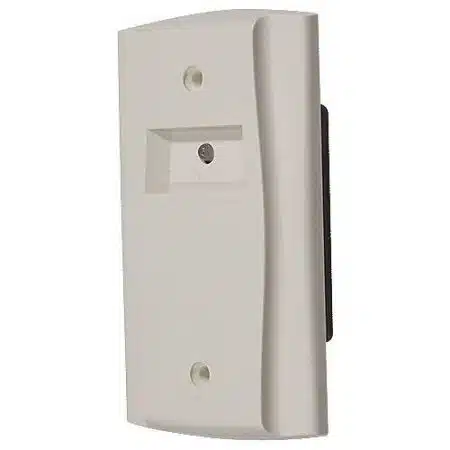

System Sensor RA100Z Remote Annunciator for both Conventional and Intelligent
Designed for both conventional and intelligent applications
Voltage Range Conventional System: 3.1 to 32V DC
Maximum Alarm Current 10
$32.40
Product Overview
Expand the versatility of the InnovairFlex™ line of duct smoke detectors with System Sensor notification and test accessories.
The RA100Z and RA100ZA remote annunciators are designed for both conventional and intelligent applications. Their red LED provides visual indication of an alarm condition.
Main Features
- Designed for both conventional and intelligent applications
- Voltage Range Conventional System: 3.1 to 32V DC
- Maximum Alarm Current 10 mA
- Intelligent System: 18 to 32 VDC
| Specifications | |||||||
| Part Number | RA100Z | Product Model | RA100Z | Product Name | RA100Z Fire Annunciator | Product Type | Annunciator Module |
| Physical Characteristics | |||||||
| Color | White | Depth | 1.3" | Height | 4.6" | Width | 2.8" |
| Miscellaneous | |||||||
| Additional Information | Voltage Range Conventional System: 3.1 to 32 VDC | Compatibility | System Sensor Duct Smoke Detectors | ||||
| Voltage Range Intelligent System: 18 to 32 VDC | |||||||
| Maximum Alarm Current 12 mA | |||||||
| Weight | 2 lbs |
|---|
