STI UB-1 Universal Button, Push Button Kit with over 300
Momentary button has over 300 combinations in one kit
Momentary button
Ready to assemble out of
$71.97
Product Overview
Easy-to-use push button allows a user to perform a calm, effective and confident action when needed. The cost-effective Universal Button offers over 300 combinations in one package. The momentary push button is ready to be assembled out of box and is easily installed within minutes on site. Faceplate constructed of cast aluminum and is slightly oversized to cover old installation marks.
Main Features
- Momentary button has over 300 combinations in one kit
- Momentary button
- Ready to assemble out of package
- Two sets of Form “C” contacts
- Faceplate constructed of cast aluminum
- UL/cUL Listed
- ADA Compliant
| Specifications | |||||||
| Part Number | UB-1 | Product Model | UB-1 | Product Name | UB-1 Push Button | Product Type | Push Button |
| Technical Information | |||||||
| Gang Type | Single Gang | ||||||
| Physical Characteristics | |||||||
| Color | Silver | Form Factor | Flush Mount, Wall Mount | Material | Cast Aluminum, Plastic | ||
| Power Description | |||||||
| Input Voltage | 125V AC, 250V AC, 30V DC | Power Source | DC | ||||
| Product Information | |||||||
| Contact Type | N/C, N/O | Print/Message | Exit, Push | ||||
| Warranty | |||||||
| Limited Warranty | 1 Year | ||||||
| Miscellaneous | |||||||

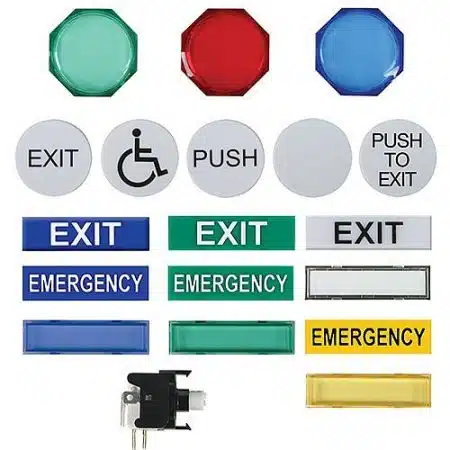

| Package Contents | UB-1 Push Button | ||||||
| 1 x Faceplate | |||||||
| 3 x Illuminated Push Buttons | |||||||
| 4 x Interchangeable Button Messages | |||||||
| 10 x Interchangeable Activation Messages | |||||||
| Weight | 2 lbs |
|---|
