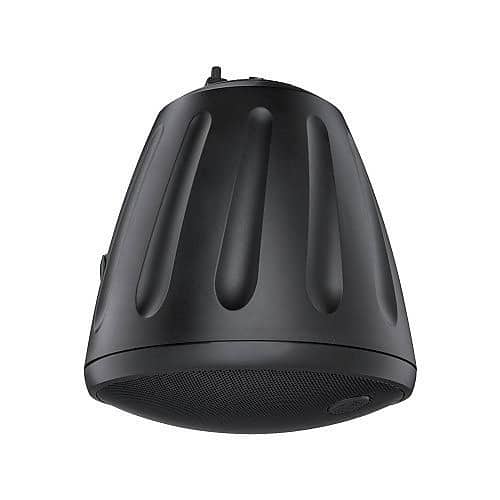

SoundTube RS600I-BK 6.5″ Hanging Speaker with BroadBeam Tweeter, Black
Broa dBeam Ring technology for excellent sound dispersion
Proprietary cast-aluminum baffle with heat sink
Weatherized components for indoor and outdoor
Special Order
$367.65
Product Overview
SoundTube RS600I Hanging Speaker in White
The RS600i has a 6.5-inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. The two-way ported speaker with an open-ceiling enclosure design delivers effective low-end response (58 Hz) and 100° off-axis performance (2 to 10 kHz, indepen-dently verified). The RS600i uses patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity. SoundTube®’s proprietary BroadBeam® waveguide tweeter system delivers consistent high-performance audio across the operating bandwidth. The RS600i speaker design incorporates a low-profile grille, proprietary motor-board and a six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass positions. Hanging hardware is included and features a SpeedClamp™ self-locking cable grip for fast, easy and secure installation. Euroblock connector and terminal weather boot are included.
Main Features
- Broa dBeam Ring technology for excellent sound dispersion
- Proprietary cast-aluminum baffle with heat sink
- Weatherized components for indoor and outdoor applications
- Built-in transformer for use with 70V commercial systems
- Steel grille with protective powdercoated finish for lasting durability
- UL 1480 (UEAY), 2239 (hanging cable) and Milspec 810 approved
| Specifications | |||||||||||||||
| Part Number | RS600I-BK | Product Model | RS600I | Product Name | RS600I Speaker | Product Series | RSi | Product Type | Speaker | ||||||
| Technical Information | |||||||||||||||
| Crossover Type | 2-way | Impedance | 8 ohms | Sensitivity | 89 dB | Speaker Size | 6.5" | Tweeter Driver Material | Aluminum | Tweeter Driver Size | 1" | Woofer Driver Material | Polypropylene Cone | Woofer Driver Size | 6.50" |
| Audio | |||||||||||||||
| Maximum Frequency Response | 22 kHz | Minimum Frequency Response | 58 Hz | PMPO Output Power | 180 W | RMS Output Power | 90W | ||||||||
| Physical Characteristics | |||||||||||||||
| Color | Black | Enclosure Type | Ported | Form Factor | Ceiling Mount | Height | 14.3" | Product Color | Black | Speaker Installation | Indoor|Outdoor | ||||
| Product Information | |||||||||||||||
| Diameter | 12.1" | ||||||||||||||
| Warranty | |||||||||||||||
| Limited Warranty | 5 Year | ||||||||||||||
| Miscellaneous | |||||||||||||||
| Environmentally Friendly | Yes | Package Contents | RS600I Speaker | TAA Compliant | No |
| Weight | 1 lbs |
|---|
