SoundTube RS4-EZ-WH 4″ Full-Range Ported Hanging Speaker,
One 4†(102 mm) full-range, treated fiber driver mounted to an ABS baffle.
Weatherized components for indoor and outdoor applications.

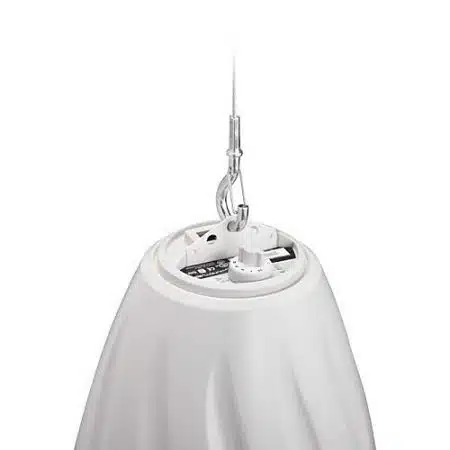

Includes hanging hardware with galvanized steel cables and integrated SpeedClA self-locking wire grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather
$173.00
Product Overview
The RS4-EZ is a 4-inch, full-range, ported speaker with an open-ceiling enclosure design. Hanging hardware is included and features a SpeedClamp™ self-locking wire grip for fast, easy and secure installation. RS4-EZ speakers utilizes the patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity. The easy access five-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position simplifies ordering and inventory tracking. The RS4-EZ speakers average sensitivity of 90.0 dB offers high-output capabilities and reduced amplification costs. SoundTube®’s custom-engineered driver and electro-acoustic network deliver high-performance sound in a cost-effective speaker design. The RS4-EZ speaker incorporates a low-profile grille and a five-position tap switch with transformer bypass position. Euroblock connector and terminal weather boot are included.
Main Features
- One 4” (102 mm) full-range, treated fiber driver mounted to an ABS baffle.
- Weatherized components for indoor and outdoor applications.
- Includes hanging hardware with galvanized steel cables and integrated SpeedClA self-locking wire grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot.
- Patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity.
- Steel grille with protective powder-coated finish for lasting durability
| Specifications | |||||||||||||||||
| Part Number | RS4-EZ-WH | Product Model | RS4-EZ | Product Name | RS4-EZ Speaker | Product Type | Speaker | ||||||||||
| Technical Information | |||||||||||||||||
| Full Range Driver Material | Paper Cone | Full Range Driver Size | 4" | Full Range Driver Size (mm) | 101.6 | Impedance (Ohm) | 8 | Maximum Frequency Response (Hz) | 22000 | Minimum Frequency Response (Hz) | 98 | PMPO Output Power (W) | 40 | Sensitivity | 90 dB | Sensitivity (dB) | 90 |
| Audio | |||||||||||||||||
| Maximum Frequency Response | 22 kHz | Minimum Frequency Response | 98 Hz | PMPO Output Power | 40 W | RMS Output Power (W) | 20 | ||||||||||
| Physical Characteristics | |||||||||||||||||
| Color | White | Diameter (mm) | 195.58 | Enclosure Type | Ported | Form Factor | Ceiling Mount | Height | 8.8" | Height (mm) | 223.52 | Speaker Installation | Indoor|Outdoor | ||||
| Product Information | |||||||||||||||||
| Diameter | 7.7" | ||||||||||||||||
| Warranty | |||||||||||||||||
| Limited Warranty | 5 Year | ||||||||||||||||
| Miscellaneous | |||||||||||||||||
| Environmentally Friendly | Yes | Package Contents | RS4-EZ Speaker | TAA Compliant | No | ||||||||||||
| Euroblock | |||||||||||||||||
| Hanging Hardware | |||||||||||||||||
| Safety Cable | |||||||||||||||||
| Terminal Weather Boot | |||||||||||||||||
| Weight | 2 lbs |
|---|
