Securitron MM15 MEMLOCK Electromechanical Maglock, 12/24 AC/DC, Failsafe, 4000

Fail Safe, but can be installed with a battery backup power supply
Optional door position switch and anti-tamper switch
Mounting plate provides easy and accurate

$487.49

Buy Now
SKU:MM15

Product Overview

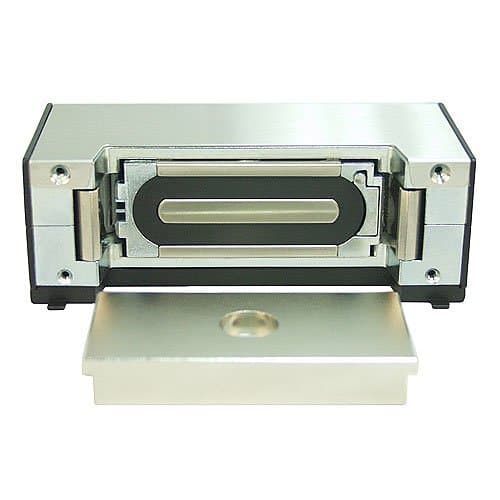

The Securitron MM15 MEMLOCK® is a 4000 lbs. holding force, dual voltage, dual current Magnalock for interior or perimeter doors where ultra-high security and compact size are required.
MM15 is a hybrid design with two spring loaded, hardened steel jaws. In the event of a forced entry attempt, the mandibles rotate inward, clamping down and capturing the edges of the armature.

Main Features

  • Fail Safe, but can be installed with a battery backup power supply
  • Optional door position switch and anti-tamper switch
  • Mounting plate provides easy and accurate installation
  • Fail Safe, but can be installed with a battery backup power supply
  • Optional door position switch and anti-tamper switch
  • Optional prep for use with 1/2″ conduit
  • Optional finishes via dress covers include Black, Polished Brass and Satin Brass
  • Brackets and accessories to configure any opening
  • Optional Temper Shield (MM15-TS) provides an added layer or protection to the lock
  • Indoor use only
Specifications
Part Number MM15 Packaged Quantity 1 Product Model MM15 Product Name MM15 Magnetic Lock Product Type Magnetic Lock
Technical Information
Door Supported Single Door Holding Force (g) 1814369.48
Physical Characteristics
Application/Usage Indoor Color Silver Form Factor Bracket Mount Lock Depth 1.87" Lock Height 2.75" Lock Width 5.1" Material Stainless Steel Shipping Weight (Approximate) 6 lb
Power Description
Input Current 100, 200 Input Current (A) 0.1, 0.2 Input Current (mAh) 200 Input Voltage 12V DC, 24V DC Input Voltage (V DC) 12, 24
Product Information
Finishing Satin Chrome Holding Force 4000 lb
Warranty
Limited Warranty Lifetime
Miscellaneous
Additional Information Fail safe, but can be installed with a battery backup power supply Certifications & Standards UL/cUL GWXT.R13976 /GWXT7.R13976 Features Dual Voltage
Mounting plate provides easy and accurate installation UL 10C Fire Rated, 1 hour
Indoor use only UL Certificate of Compliance (CoC)
CAN/ULC-S533 Listed
MM15 - Underwriter's Laboratories: File R21226
