Resideo 6290WC 7″ Color Touchscreen Keypad with Voice for VISTA Systems, (Replaces 6280S,

Critical software updates via push from Resideo or local onsite updates via the 6290W/C SD card slot
Authorized users can simply add and delete user codes
Backplate designed to easily update or retrofit current 6160 and 6280W

$289.49

Buy Now
SKU:6290WC

Product Overview

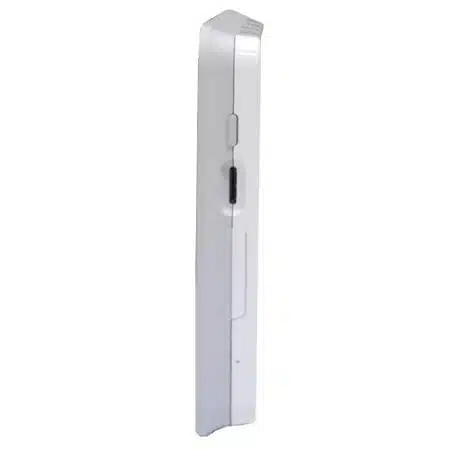

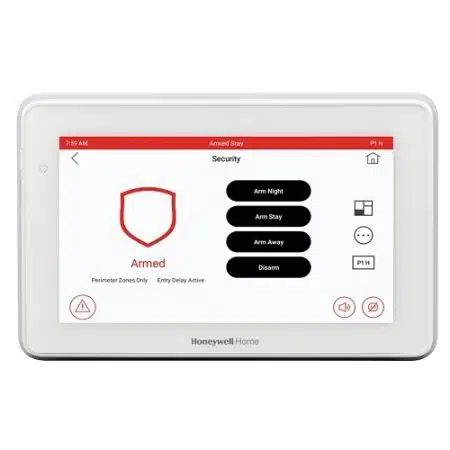

The Resideo 6290WC 7″ color graphic high-resolution touchscreen keypad with voice annunciation is the ideal choice to increase keypad revenue on new installations, as well as an easy upgrade opportunity for existing VISTA residential and light commercial installations.

The thin/sleek design will look appealing in any residence or business. The ability to add pictures and videos to the home screen lets users customize it to their own preferences, or dealers can add their company logo or message for increased awareness and referrals.

Main Features

  • Critical software updates via push from Resideo or local onsite updates via the 6290W/C SD card slot
  • Authorized users can simply add and delete user codes
  • Backplate designed to easily update or retrofit current 6160 and 6280W installs
  • Easy to Use: Clean touchscreen display with easily identifiable icons and prompts
Specifications
 Part Number 6290WC Product Line VISTA Product Model 6290 Product Name 7" Color Touchscreen Keypad with Voice Product Type Security Touchscreen Keypad
Technical Information
Device Supported Control Panel
Built-in Devices
Built-in Devices Speaker
Physical Characteristics
Color White Depth 0.76"|19.5 mm Depth (mm) 19.304 Height 5.06"|128.7 mm Height (mm) 128.524 Width 7.94"|201.7 mm Width (mm) 201.676
Product Information
Installation Type Hybrid
Miscellaneous
Additional Information Wiring (Standard four-wire connection): Compatibility VISTA-128BPT, VISTA-128FBPT, VISTA-15P, VISTA-20P, VISTA-21iP, VISTA-250BPT, VISTA-250FBPT, VISTA-32FBPT
Black Ground Red +12VDC (Aux Power)
Green "Data in" to control panel
Yellow "Data out" from control panel
