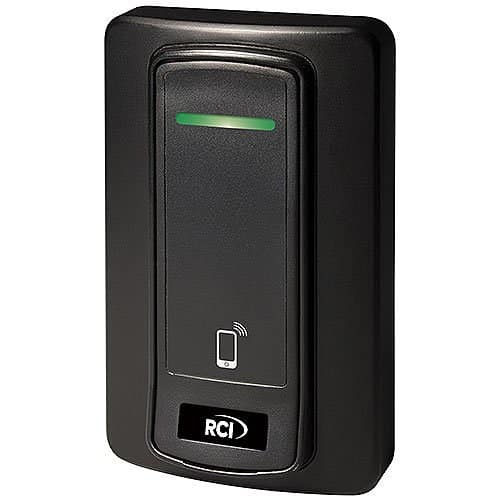

RCI PCR-35L Conekt 125 KHz Proximity and Bluetooth Mobile-Ready
Read range: Up to 4″ for physical credentials and 15′ for mobile credentials.
Supports Pyramid + certain HID 125-kHz Proximity protocols + certain AWID 125-kHz Proximity protocols and RCI Conekt
Operates with Proximity and Bluetooth Low Energy
$296.55
Product Overview
A mobile smartphone access control ID solution. Based upon the proven LEGIC® contactless digital radio frequency identification (RFID) platform, RCI Conekt readers interface with a wide range of electronic access control systems by complying with either the legacy Wiegand or the latest bi-directional Open Supervised Device Protocol (OSDP). They offer value-add features such as MAXSecure™, and can be ordered to support several proximity card and tag technologies. In addition to traditional proximity credentials, such as clamshell cards and key tags, the platform also offers the option of mobile access credentials loaded on Bluetooth Low Energy (BLE)-enabled smartphones. This allows the smartphone to function as a contactless electronic access control credential.
Main Features
- Read range: Up to 4″ for physical credentials and 15′ for mobile credentials.
- Supports Pyramid + certain HID 125-kHz Proximity protocols + certain AWID 125-kHz Proximity protocols and RCI Conekt
- Operates with Proximity and Bluetooth Low Energy (BLE)
- Mullion mount and single-gang switch box mount included
- 125 kHz (proximity) and 2.4 GHz (BLE)
- IP67 waterproof rating
| Specifications | |||||||||
| Part Number | PCR-35L | Product Line | Conekt | Product Model | PCR-35L | Product Name | Conekt PCR-35L 125kHz Standard Security Reader | Product Type | Card Reader Access Device |
| Technical Information | |||||||||
| Bluetooth | Yes | Host Interface | Wiegand | Identification Method | Proximity | Operating Range | 2.01" | ||
| Interfaces/Ports | |||||||||
| Wiegand | Yes | ||||||||
| Physical Characteristics | |||||||||
| Color | Black | Depth | 1.2" | Form Factor | Door Mount, Gang Box Mount, Surface Mount, Wall Mount | Height | 5.1" | Width | 3" |
| Power Description | |||||||||
| Input Voltage | 14V DC, 8V DC | ||||||||
| Product Information | |||||||||
| Operating Frequency | 125 kHz | ||||||||
| Warranty | |||||||||
| Limited Warranty | Lifetime | ||||||||
| Miscellaneous | |||||||||
| Compatibility | Technologies Supported: | Indoor/Outdoor | Indoor, Outdoor | ||||||
| Pyramid | |||||||||
| HID® 125-kHz Proximity Protocols | |||||||||
| AWID® 125-kHz Proximity Protocols | |||||||||
| RCI Conekt | |||||||||
| Weight | 4 lbs |
|---|
