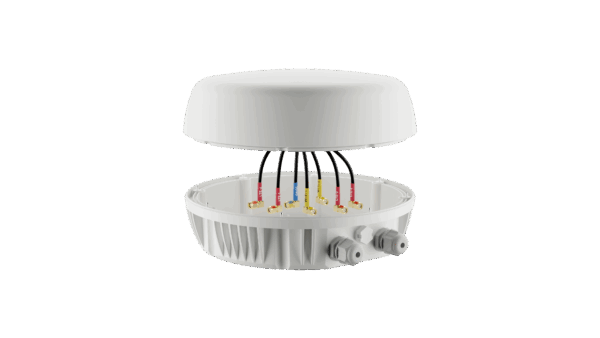

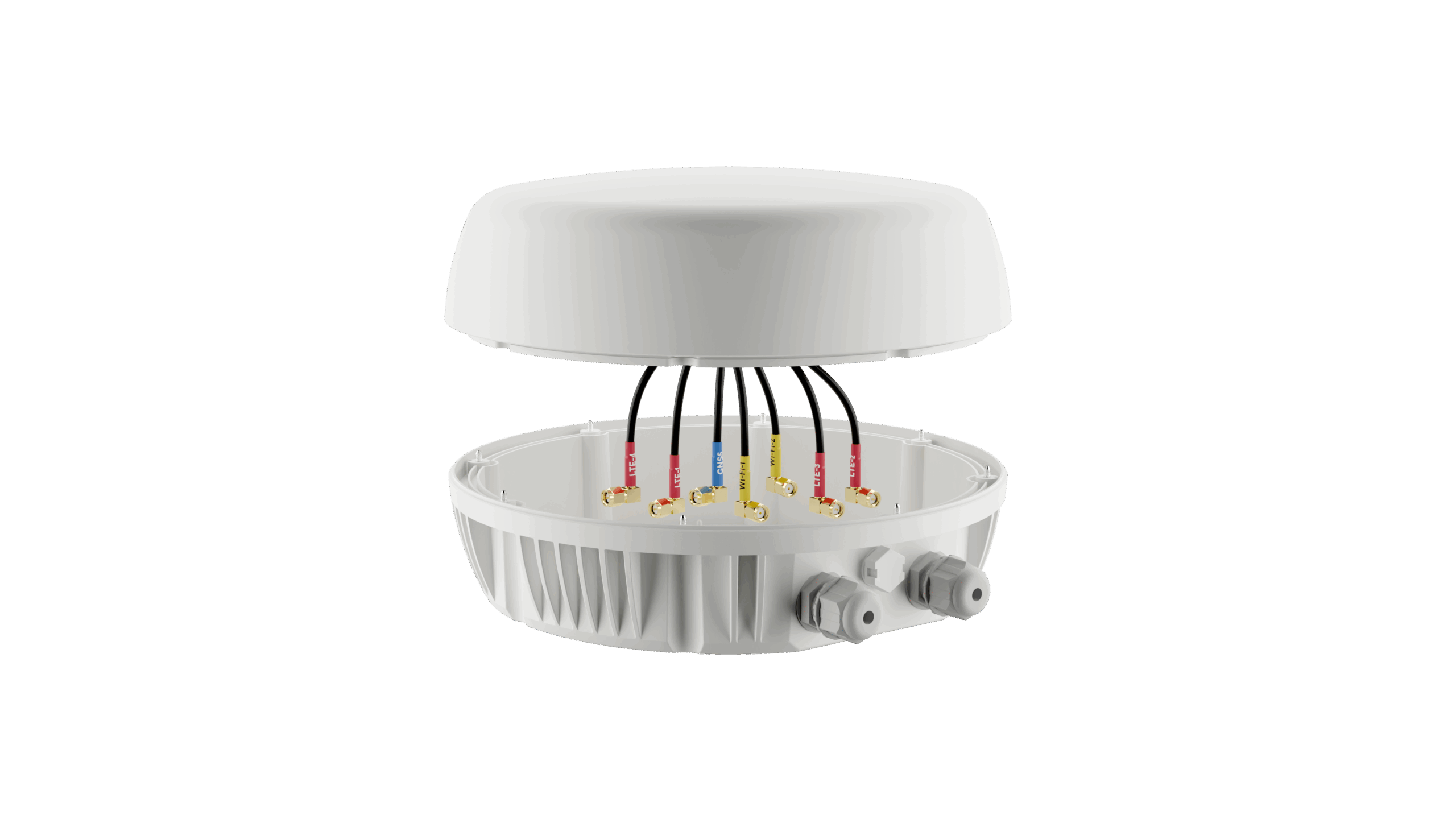

Peplink ANT-MAX Antenna Max

Product Dimensions

• Height: 4.72" (120 mm)

• Diameter: 9.84" (250 mm)

Packaged Dimensions

• 13.82" x 11.61" x 5.75" (351 x 295 x 146 mm)

Enclosure Material

• UV stable PC (Polycarbonate)

Compliance

• ROHS, REACH, WEEE

Enclosure Flammability

• UL 94 V-0 (1.47 mm)

UV Resistance

• UL 746C (F1 long-term UV exposure)

Salt Spray Resistance

• MIL-STD 810F / ASTM 8117

IP Rating

• IP67

Operating Temperature

• -40° – 176°F / -40° – 80°C

Storage Temperature

• -40° – 176°F / -40° – 80°C

Supported Mounting Types

• Surface

• Wall

• Pole

Package Contents

• Antenna MAX

• L-Mount Set

• Double-sided 3M Adhesive Pad

• 3x Cable Glands

• 2x Hole Plugs
