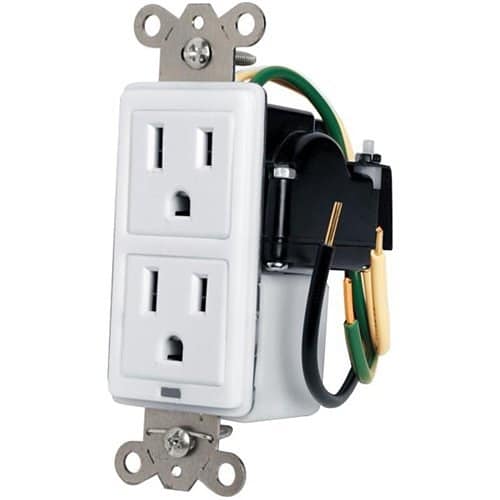

Panamax MIW-SURGE-1G Max-In-Wall 15A Duplex with Surge
Decora Faceplate Interface
This piece surrounds the receptacles and fits within a standard cover plates Decora cutout.
Uses standardWiring device
$55.17
Product Overview
Two AC receptacles provide power protection to remotely located devices. Fits most standard single gang plastic or metal boxes.
Two AC receptacles provide surge protection. Fits most standard single gang plastic or metal boxes.
Main Features
- Decora Faceplate Interface
- This piece surrounds the receptacles and fits within a standard cover plates Decora cutout.
- Uses standardWiring device screw-hole.
- Bi-color Indicator LED.
- Green = Power On
- Red = Line Fault
- Both Outlets with Protect-or-Disconnect Circuitry.
| Specifications | |||||||||||||
| Part Number | MIW-SURGE-1G | Packaged Quantity | 1 Each | Product Line | Max-In-Wall | Product Model | MIW-SURGE-1G | Product Name | Max-In-Wall 15 Amp Duplex with Surge Protection | Product Type | Power Socket | ||
| Technical Information | |||||||||||||
| Receptacle Type | AC | Receptacles Detail | 2 x AC | ||||||||||
| Physical Characteristics | |||||||||||||
| Color | White | Depth | 2.3" | Depth (mm) | 57.15 | Height | 4.3" | Height (mm) | 10795% | Width | 1.4" | Width (mm) | 34.925 |
| Power Description | |||||||||||||
| Current Rating | 15A | Current Rating (A) | 15 | Voltage Rating | 120V AC | ||||||||
| Product Information | |||||||||||||
| Mount Type | Ceiling Mount, Wall Mount | ||||||||||||
| Warranty | |||||||||||||
| Limited Warranty | 3 Year | ||||||||||||
| Miscellaneous | |||||||||||||
| Additional Information | Country of origin: China. Country of origin is subject to change. | Package Contents | Max-In-Wall 15 Amp Duplex with Surge Protection | ||||||||||
| 3 x Wire Nuts | |||||||||||||
| 2 x Mounting Screws (Pre-installed) | |||||||||||||
| Weight | 2 lbs |
|---|
