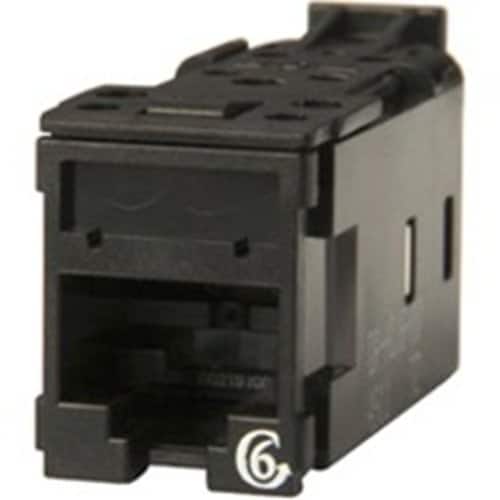

Ortronics HDJ6-00 Clarity CAT6 High-Density Jack, T568A/B,
Guaranteed Performance levels: ETL verified to TIA Category 6a & 6 component specification.
Lacing Cap Design: No punch tool required, quick termination and installation time.
Rear loading: Preferred mounting for
$15.26
Product Overview
Clarity 6 High Density Jack, ETL verified to TIA Category 6 component specification. Rear-loading, 180° exit, 8 position. Quick and easy lacing cap termination. Universal T568A/B wiring label. Center tuned to Clarity 6 patch cords for optimum performance.
Main Features
- Guaranteed Performance levels: ETL verified to TIA Category 6a & 6 component specification.
- Lacing Cap Design: No punch tool required, quick termination and installation time.
- Rear loading: Preferred mounting for panels.
- Icon compatible, C6a & Cat6 marking on jack face: Supports 606 designation requirements.
- RoHS compliant: Lead free.
- Easy to follow universal wiring label: Quick and user-friendly, eliminates confusion.
- Center tuned design: Transparent interface with Clarity 6a & 6 patch cords.
- High density footprint: Supports 48 port 1RU panel applications.
- Supports PoE: IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4
| Specifications | |||||||||||||||
| Part Number | HDJ6-00 | Packaged Quantity | 1 | Product Line | Clarity | Product Name | Clarity High Density Jack (HDJ) CAT6, T568A/B, Black | Product Type | Network Connector | ||||||
| Technical Information | |||||||||||||||
| Connector Details | 1 x 8-pin RJ-45 Network Female | Contact Plating | Gold, Nickel, Tin | Network Category Type | CAT6 | Shielding | No | ||||||||
| Interfaces/Ports | |||||||||||||||
| Connector Type | RJ45 Network Female | ||||||||||||||
| Physical Characteristics | |||||||||||||||
| Color | Black | Depth | 1.6" | Depth (mm) | 40.89 | Height | 0.8" | Height (mm) | 21.34 | Product Color | Black | Width | 0.6" | Width (mm) | 16 |
| Product Information | |||||||||||||||
| Mount Type | Panel Mount | ||||||||||||||
| Miscellaneous | |||||||||||||||
| Environmental Certification | EU RoHS, RoHS | Environmentally Friendly | Yes | Features | EMI Protection, Lacing Cap, Lead-free, PoE | TAA Compliant | No | ||||||||
| Weight | 2 lbs |
|---|
