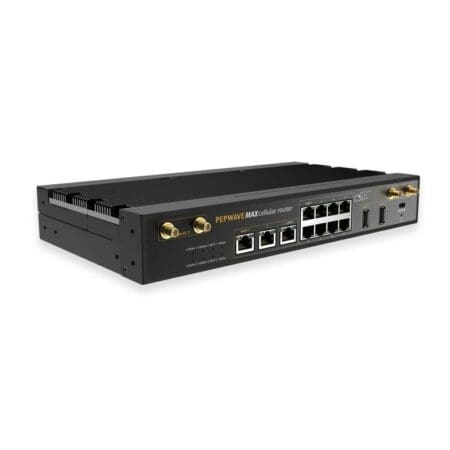

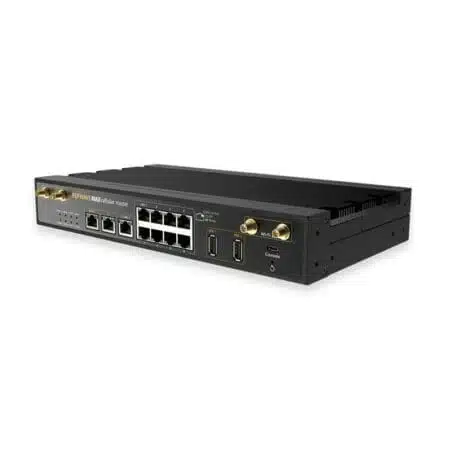

MAX-HD4-MBX-GLTE-S-T Peplink MAX HD4 MBX 4x LTEA CAT 20 – Global – QMA – AC Adapter & Antennas

Name: MAX-HD4-MBX-GLTE-S-T Peplink MAX HD4 MBX 4x LTEA CAT 20 - Global - QMA - AC Adapter &amp; Antennas
SKU: MAX-HD4-MBX-GLTE-S-T
Availability: OutOfStock

$9,999.00

SKU:MAX-HD4-MBX-GLTE-S-T

Categories:Networking, Cellular Connectivity, MAX

Peplink MAX HD4 MBX
4x LTEA CAT 20 – Global – QMA – AC Adapter & Antennas

Back to Top

Product has been added to your cart

	MAX HD4 MBX
WAN Interface	2x USB Interface 3x GE* 4x Embedded LTE-A Pro Modems with Redundant SIM Slots
LAN Interface	9x GE*
Wi-Fi Interface	1802.11ac/a/b/g/n, 1166 Mbps 2×2 MIMO Wi-Fi WAN and/or AP Simultaneous Dual-Band
Router Throughput @	2.5 Gbps
Number of PepVPN	2/20
PepVPN/SpeedFusion Throughput (No Encryption) \| (256-bit AES)	600 Mbps \| 500 Mbps
LTE-A Pro Modems	Downlink/Uplink Datarate: 600 Mbps/150 Mbps
Recommended Users	50-500

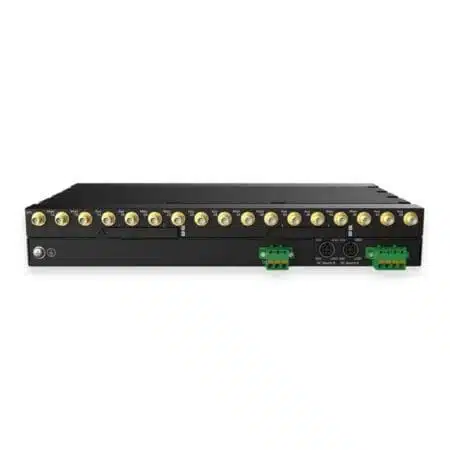

Cellular and GPS Antenna Connector	8x SMA Antenna Connectors 1x SMA GPS Antenna Connector 4x RP-SMA Wi-Fi Antenna Connectors
Power Input	DC Jack/Terminal Block: 12-56 V #
Power Output	Up to Eight 802.3at PoE Outputs #
Power Consumption	55W
Dimensions	1.7 x 11.5 x 7.0 inches \| 43 x 292 x 177 mm
Weight	12 pounds \| 3.3 kg
Operating Temperature	-40° – 149°F \| -40° – 65°C
Humidity	15% – 95% (non-condensing)
Power Requirements	DC Jack: 10V – 56V
Certifications	FCC, CE, RoHS Shock and Vibration Resistance: EN 61373:1999 IEC 61373:1999 RCM, E-Mark, PTCRB Railway Applications: EN 50155 Electromagnetic Compatibility: EN 61000 RF Port Lighting Immunity – ITU-T K.20 (+/- 1.5 kV)
Package Content	MAX HD4 MBX PSU for the MAX HD4 MBX LTEA (ACW-630) 4x Dual Band Wi-Fi Antennas (ACW-341) 1x GPS Active Antenna (ACW-232) 8x 2dBi 4G LTE Antennas (ACW-234) 1 Pair of Mounting Brackets (ACW-513) 1x SIM Cover
