LifeSafetyPower FPO150-B100C82D8PBP4M 150W Dual Voltage, 120 VAC 8 Relay Lock Outputs 16 Auxiliary Outputs

$830.78

Buy Now
SKU:FPO150-B100C82D8PBP4M

Power Systems combine FlexPower power modules alongside access control hardware in one compact and secure UL listed solution. Unified Power features include:

  • Built in Fire Alarm disconnect unlocks doors on a fire alarm
  • Low battery cutoff protects batteries from deep discharge
  • Dedicated fast charger prolongs battery life
  • Enhanced surge immunity for input/output protection
  • Locksafe optimized voltages provide long-term lock protection
  • OutSmart Visual LED notification (12V/Green, 24V/Blue)
  • Network ready with optional LifeSafety Power NetLink® module
    • Monitor power supply and battery in NetLink dashboard
    • Remote test batteries
  • Lifetime Warranty LifeSafety Power’s quality commitment

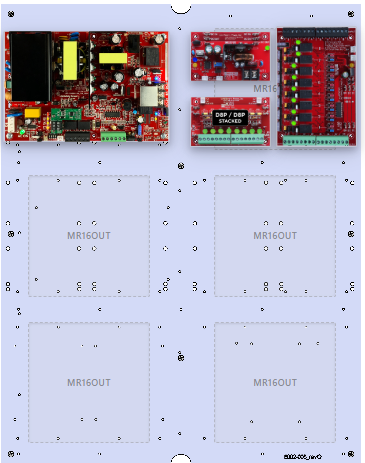

  • 1 x FPO150 150W Total Output, 120 VAC Input, AC Fault and System Fault form C contacts may be triggered by low/no battery, short to earth ground, power supply failure, or blown fuse
  • 1 x B100 Terminal block output is Class 2 power limited and jumper selectable for either a fixed 12VDC or an adjustable range between 5-18VDC at 4 amps maximum current
  • 1 x C8 (8 Relay Lock Outputs) 3A fused outputs, programmable for failsafe/failsecure, FAI, NC/NO input, voltage or dry output per zone.  Dual buss voltage selection by zone, OutSmart dual color LEDs
  • 2 x D8P (16 Auxiliary Outputs) 2.5A Class 2 Power Limited Outputs, dual buss voltage selection by zone, OutSmart dual color LEDs

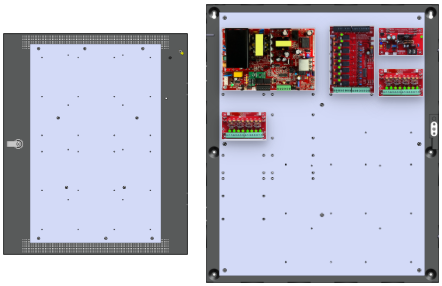

    • Backplate E4M
  • System Weight 5.70 lbs (2.59kg)
Weight 6 lbs
