Name: LifeSafetyPower FPO150-B1002C4W1M 150W Dual Voltage, 120 VAC 8 Relay Lock Outputs
SKU: FPO150-B1002C4W1M
Availability: InStock

Power Systems combine FlexPower power modules alongside access control hardware in one compact and secure UL listed solution. Unified Power features include:

Built in Fire Alarm disconnect unlocks doors on a fire alarm
Low battery cutoff protects batteries from deep discharge
Dedicated fast charger prolongs battery life
Enhanced surge immunity for input/output protection
Locksafe optimized voltages provide long-term lock protection
OutSmart Visual LED notification (12V/Green, 24V/Blue)
Network ready with optional LifeSafety Power NetLink® module
- Monitor power supply and battery in NetLink dashboard
- Remote test batteries
Lifetime Warranty LifeSafety Power’s quality commitment

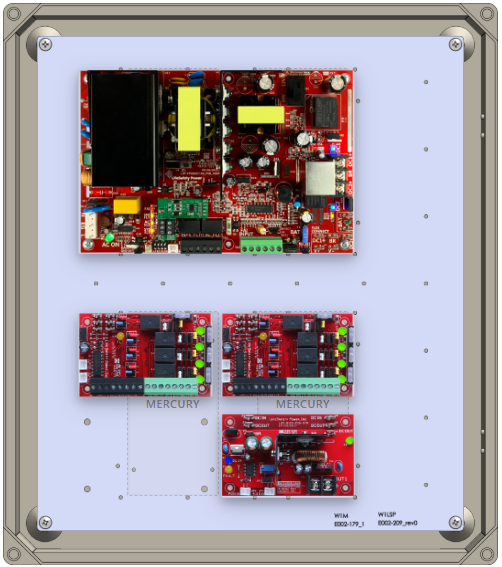

System Details

1 x FPO150 150W Total Output, 120 VAC Input, AC Fault and System Fault form C contacts may be triggered by low/no battery, short to earth ground, power supply failure, or blown fuse
1 x B100 Terminal block output is Class 2 power limited and jumper selectable for either a fixed 12VDC or an adjustable range between 5-18VDC at 4 amps maximum current
2 x C4 (8 Relay Lock Outputs) 3A fused outputs, programmable for failsafe/failsecure, FAI, NC/NO input, voltage or dry output per zone. Dual buss voltage selection by zone, OutSmart dual color LEDs
W1M Enclosure Size: 16.75H x 14.75W x 6.75D in (42.55 x 37.47 x 17.14 cm)
- Enclosure W1
- Backplate W1M
System Weight 1.95 lbs (0.88kg)

Weight	1.95 lbs
