LifeSafetyPower FPO150-3C8P2D8PE12M/P24-A Mercury ProWire Power Systems 150W Single Voltage, 120 VAC 24 Relay Lock Outputs 16 Auxiliary Outputs
$8,280.58
Mercury ProWire Power Systems combine FlexPower modules alongside access control hardware in one compact and secure UL listed solution. ProWire systems are prewired for power to the access control modules, faults, tamper switch, lock control wiring (where applicable) and communication. ProWire features include:
- Built in Fire Alarm disconnect unlocks doors on a fire alarm
- Low battery cutoff protects batteries from deep discharge
- Dedicated fast charger prolongs battery life
- Enhanced surge immunity for input/output protection
- Locksafe optimized voltages provide long-term lock protection
- OutSmart Visual LED notification (12V/Green, 24V/Blue)
- Network ready with optional LifeSafety Power NetLink® module
- Monitor power supply and battery in NetLink dashboard
- Remote test batteries
- Lifetime Warranty LifeSafety Power’s quality commitment
- 1 x FPO150 150W Total Output, 120 VAC Input, AC Fault and System Fault form C contacts may be triggered by low/no battery, short to earth ground, power supply failure, or blown fuse
- 3 x C8P (24 Relay Lock Outputs) 2.5A Class 2 power limited outputs, programmable for failsafe/failsecure, FAI, NC/NO input, voltage or dry output per zone. Dual buss voltage selection by zone, OutSmart dual color LEDs
- 2 x D8P (16 Auxiliary Outputs) 2.5A Class 2 Power Limited Outputs, dual buss voltage selection by zone, OutSmart dual color LEDs
- E12M/W24-A Enclosure Size: 48.0H x 36.0W x 8.5D in (121.92 x 91.44 x 21.59 cm)
- Enclosure E12 Enclosure with no backplate
- Backplate E12M Backplate mounting for LP1502, LP4502, LP2500, MR52, MR16IN/OUT

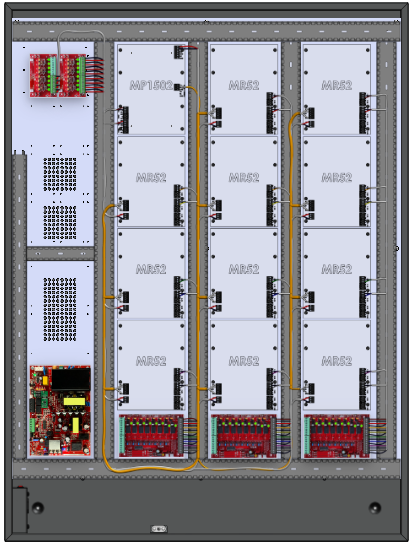

- ProWire E12M/W24-A Prewired for 24 Doors, 1xLP1502, 11xMR52
- Routing Kit Panduit, E12M
- LED Light Kit
- System Weight 114.65 lbs (52.00kg)
| Weight | 120 lbs |
|---|
