LifeSafetyPower FPG200-B150M8NLXSD16E6M/P8-A Mercury ProWire Power Systems 200W Dual Voltage, Universal 8 Managed Lock Outputs 16 Managed Auxiliary Outputs
$3,780.81
Mercury ProWire Power Systems combine FlexPower modules alongside access control hardware in one compact and secure UL listed solution. ProWire systems are prewired for power to the access control modules, faults, tamper switch, lock control wiring (where applicable) and communication. ProWire features include:
- Built in Fire Alarm disconnect unlocks doors on a fire alarm
- Low battery cutoff protects batteries from deep discharge
- Dedicated fast charger prolongs battery life
- Enhanced surge immunity for input/output protection
- Locksafe optimized voltages provide long-term lock protection
- OutSmart Visual LED notification (12V/Green, 24V/Blue)
- Network ready with optional LifeSafety Power NetLink® module
- Monitor power supply and battery in NetLink dashboard
- Remote test batteries
- Lifetime Warranty LifeSafety Power’s quality commitment
- 1 x FPG200 200W Total Output, Universal Input, AC Fault and System Fault form C contacts may be triggered by low/no battery, short to earth ground, power supply failure, or blown fuse
- 1 x B150 Programmable 12V or 3-18V output, 6A, overload protection, fault reporting, compact size
- 1 x M8 (8 Managed Lock Outputs) 3A fused outputs, programmable for failsafe/failsecure, remote power cycle, monitor voltage and current on each output, programmable limits, dual buss voltage selection by zone, cycle count by zone, bi-color output LEDs verify voltage setting
- 1 x NLX NetLink Module Provides remote monitoring of power supply and battery set, remote battery testing, temperature monitoring, tamper switch monitoring, email/SNMP alerts on faults, RS485 port for Distributed Power Monitoring (DPM), compatible with MSM Multi-site Management software
- 1 x SD16 (16 Managed Auxiliary Outputs) 1A Class II Power limited outputs, remote power cycle, monitor voltage and current on each output, programmable limits, dual buss voltage selection by zone, cycle count by zone, bi-color LEDs verify voltage setting

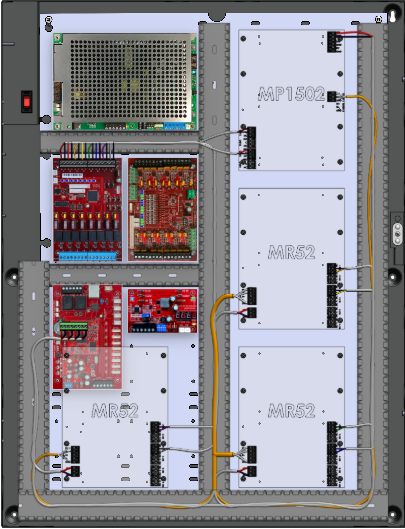

- E6M/W8-A Enclosure Size: 30.0H x 23.0W x 6.5D in (76.20 x 58.42 x 16.51 cm)
- Enclosure E6
- Backplate E6M
- ProWire E6M/W8-A Prewired for 8 Doors, 1xLP1502, 3xMR52
- Routing Kit Panduit, E6M
- LED Light Kit
- System Weight 42.25 lbs (19.16kg)
| Weight | 50 lbs |
|---|
