Name: LifeSafetyPower FPG200-B100C82D8PE6M/P8-A Mercury ProWire Power Systems 200W Dual Voltage, Universal 8 Relay Lock Outputs 16 Auxiliary Outputs
SKU: FPG200-B100C82D8PE6M/P8-A
Availability: InStock

Mercury ProWire Power Systems combine FlexPower modules alongside access control hardware in one compact and secure UL listed solution. ProWire systems are prewired for power to the access control modules, faults, tamper switch, lock control wiring (where applicable) and communication. ProWire features include:

Built in Fire Alarm disconnect unlocks doors on a fire alarm
Low battery cutoff protects batteries from deep discharge
Dedicated fast charger prolongs battery life
Enhanced surge immunity for input/output protection
Locksafe optimized voltages provide long-term lock protection
OutSmart Visual LED notification (12V/Green, 24V/Blue)
Network ready with optional LifeSafety Power NetLink® module
- Monitor power supply and battery in NetLink dashboard
- Remote test batteries
Lifetime Warranty LifeSafety Power’s quality commitment

1 x FPG200 200W Total Output, Universal Input, AC Fault and System Fault form C contacts may be triggered by low/no battery, short to earth ground, power supply failure, or blown fuse
1 x B100 Terminal block output is Class 2 power limited and jumper selectable for either a fixed 12VDC or an adjustable range between 5-18VDC at 4 amps maximum current
1 x C8 (8 Relay Lock Outputs) 3A fused outputs, programmable for failsafe/failsecure, FAI, NC/NO input, voltage or dry output per zone. Dual buss voltage selection by zone, OutSmart dual color LEDs
2 x D8P (16 Auxiliary Outputs) 2.5A Class 2 Power Limited Outputs, dual buss voltage selection by zone, OutSmart dual color LEDs

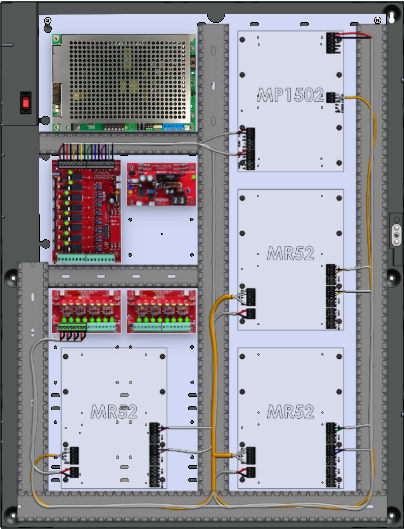

E6M/W8-A Enclosure Size: 30.0H x 23.0W x 6.5D in (76.20 x 58.42 x 16.51 cm)
- Enclosure E6
- Backplate E6M
- ProWire E6M/W8-A Prewired for 8 Doors, 1xLP1502, 3xMR52
- Routing Kit Panduit, E6M
LED Light Kit
System Weight 42.95 lbs (19.48kg)

Weight	55 lbs
