LifeSafetyPower FPG200/200-B1502M8NL4SD16E8M2 Mercury Unified Power Systems 400W Dual Voltage, Universal 16 Managed Lock Outputs 16 Managed Auxiliary Outputs
$3,614.66
Mercury Unified Power Systems combine FlexPower power modules alongside access control hardware in one compact and secure UL listed solution. Unified Power features include:
- Built in Fire Alarm disconnect unlocks doors on a fire alarm
- Low battery cutoff protects batteries from deep discharge
- Dedicated fast charger prolongs battery life
- Enhanced surge immunity for input/output protection
- Locksafe optimized voltages provide long-term lock protection
- OutSmart Visual LED notification (12V/Green, 24V/Blue)
- Network ready with optional LifeSafety Power NetLink® module
- Monitor power supply and battery in NetLink dashboard
- Remote test batteries
- Lifetime Warranty LifeSafety Power’s quality commitment
- 2 x FPG200 400W Total Output, Universal Input, AC Fault and System Fault form C contacts may be triggered by low/no battery, short to earth ground, power supply failure, or blown fuse
- 1 x B150 Programmable 12V or 3-18V output, 6A, overload protection, fault reporting, compact size
- 2 x M8 (16 Managed Lock Outputs) 3A fused outputs, programmable for failsafe/failsecure, remote power cycle, monitor voltage and current on each output, programmable limits, dual buss voltage selection by zone, cycle count by zone, bi-color output LEDs verify voltage setting
- 1 x NL4 NetLink Module Provides remote monitoring of power supply and battery set, remote battery testing, temperature monitoring, tamper switch monitoring, email/SNMP alerts on faults, compatible with MSM Enterprise
- 1 x SD16 (16 Managed Auxiliary Outputs) 1A Class II Power limited outputs, remote power cycle, monitor voltage and current on each output, programmable limits, dual buss voltage selection by zone, cycle count by zone, bi-color LEDs verify voltage setting
- E8M2 Enclosure Size: 36.0H x 30.0W x 6.5D in (91.44 x 76.20 x 16.51 cm)
- Enclosure E8 E8 enclosure size 36H x 30W x 6.5D

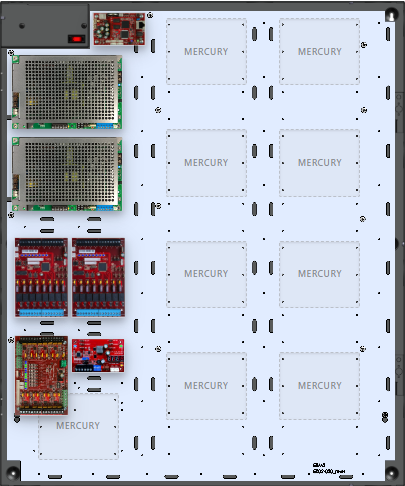

- Backplate E8M2 Backplate mounting for LP1502, LP4502, LP2500, MR52, MR16IN/OUT
- System Weight 60.50 lbs (27.44kg)
| Weight | 70 lbs |
|---|
