Name: LifeSafetyPower FPG200/200-3C83D8PE12M Mercury Unified Power Systems 400W Dual Voltage, Universal 24 Relay Lock Outputs 24 Auxiliary Outputs
SKU: FPG200/200-3C83D8PE12M
Availability: InStock

Mercury Unified Power Systems combine FlexPower power modules alongside access control hardware in one compact and secure UL listed solution. Unified Power features include:

Built in Fire Alarm disconnect unlocks doors on a fire alarm
Low battery cutoff protects batteries from deep discharge
Dedicated fast charger prolongs battery life
Enhanced surge immunity for input/output protection
Locksafe optimized voltages provide long-term lock protection
OutSmart Visual LED notification (12V/Green, 24V/Blue)
Network ready with optional LifeSafety Power NetLink® module
- Monitor power supply and battery in NetLink dashboard
- Remote test batteries
Lifetime Warranty LifeSafety Power’s quality commitment

2 x FPG200 400W Total Output, Universal Input, AC Fault and System Fault form C contacts may be triggered by low/no battery, short to earth ground, power supply failure, or blown fuse
3 x C8 (24 Relay Lock Outputs) 3A fused outputs, programmable for failsafe/failsecure, FAI, NC/NO input, voltage or dry output per zone. Dual buss voltage selection by zone, OutSmart dual color LEDs
3 x D8P (24 Auxiliary Outputs) 2.5A Class 2 Power Limited Outputs, dual buss voltage selection by zone, OutSmart dual color LEDs

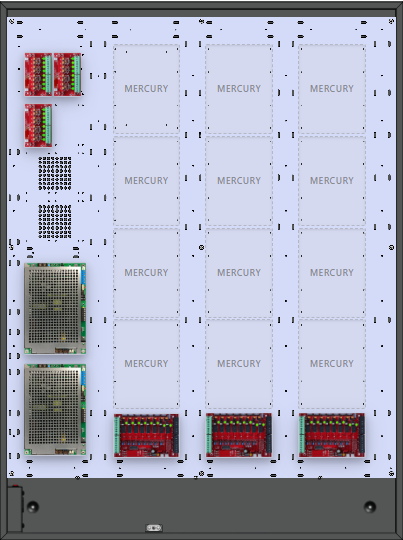

E12M Enclosure Size: 48.0H x 36.0W x 8.5D in (121.92 x 91.44 x 21.59 cm)
- Enclosure E12 Enclosure with no backplate
- Backplate E12M Backplate mounting for LP1502, LP4502, LP2500, MR52, MR16IN/OUT
System Weight 113.05 lbs (51.28kg)

Weight	115 lbs
