Name: LifeSafetyPower FPG100-B100M8PNL4E6M Mercury Unified Power Systems 100W Dual Voltage, Universal 8 Managed Lock Outputs
SKU: FPG100-B100M8PNL4E6M
Availability: InStock

Mercury Unified Power Systems combine FlexPower power modules alongside access control hardware in one compact and secure UL listed solution. Unified Power features include:

Built in Fire Alarm disconnect unlocks doors on a fire alarm
Low battery cutoff protects batteries from deep discharge
Dedicated fast charger prolongs battery life
Enhanced surge immunity for input/output protection
Locksafe optimized voltages provide long-term lock protection
OutSmart Visual LED notification (12V/Green, 24V/Blue)
Network ready with optional LifeSafety Power NetLink® module
- Monitor power supply and battery in NetLink dashboard
- Remote test batteries
Lifetime Warranty LifeSafety Power’s quality commitment

1 x FPG100 100W Total Output, Universal Input, AC Fault and System Fault form C contacts may be triggered by low/no battery, short to earth ground, power supply failure, or blown fuse
1 x B100 Terminal block output is Class 2 power limited and jumper selectable for either a fixed 12VDC or an adjustable range between 5-18VDC at 4 amps maximum current
1 x M8P (8 Managed Lock Outputs) 2.5A Class 2 power limited outputs, programmable for failsafe/failsecure, remote power cycle, monitor voltage and current on each output, programmable limits, dual buss voltage selection by zone, cycle count by zone, bi-color output LEDs verify voltage setting
1 x NL4 NetLink Module Provides remote monitoring of power supply and battery set, remote battery testing, temperature monitoring, tamper switch monitoring, email/SNMP alerts on faults, compatible with MSM Enterprise

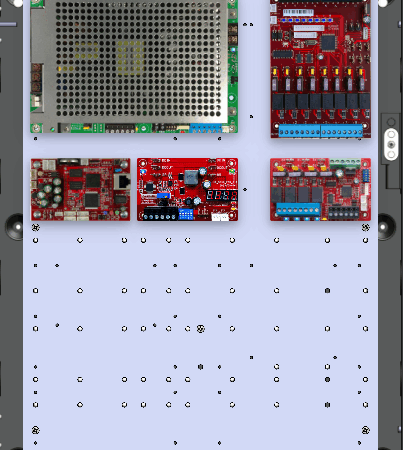

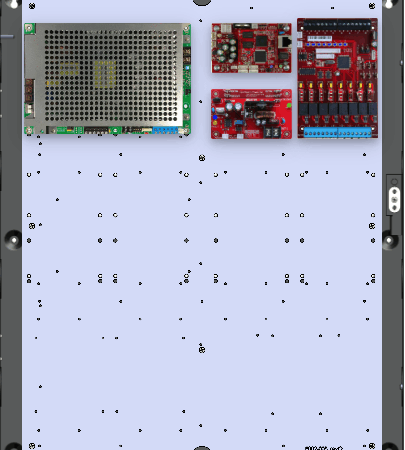

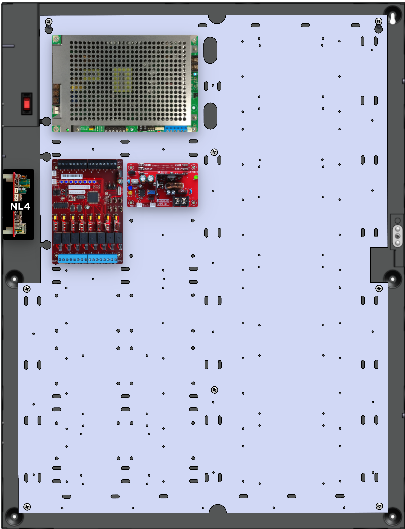

E6M Enclosure Size: 30.0H x 23.0W x 6.5D in (76.20 x 58.42 x 16.51 cm)
- Enclosure E6
- Backplate E6M
System Weight 42.60 lbs (19.32kg)
Electrical Ratings

Parameter

Rating

Input Voltage

Universal Input, 100-240 VAC,50/60Hz

Input Power (max)

153W

Output Power

100W

Managed Lock Outputs

8 @ 2.5A Class 2 Power Limited

Maximum Charge Current

FPG100: 1.1A, 40AH maximum

Low Power Disconnect

at 70% of battery voltage

Systems BTU/Hr

85 BTU/Hr

Operating Temperature

32 to 122F (0 to +50C)

Efficiency

81% 120VAC 60Hz In, Full Load

Agency Approvals

FCC Part 15, Subpart B IEC 62368-1:2014, EN 55032:2015, EN6100-3-2:2014, EN6100-3-3:2013, EN55024:2010+A1:2015, BIS IS13252(Part 1):2010, REACH 209, ROHS 3, RCM AS/NZS 4417.1, SAA AS/NZS 62368.1:2018, PSE J62368-1(2020), PSE J55032(H29)

Weight	50 lbs
