Name: LifeSafetyPower FPG100-B100C4D8PE2M Mercury Unified Power Systems 100W Dual Voltage, Universal 4 Relay Lock Outputs 8 Auxiliary Outputs
SKU: FPG100-B100C4D8PE2M
Availability: InStock

Mercury Unified Power Systems combine FlexPower power modules alongside access control hardware in one compact and secure UL listed solution. Unified Power features include:

Built in Fire Alarm disconnect unlocks doors on a fire alarm
Low battery cutoff protects batteries from deep discharge
Dedicated fast charger prolongs battery life
Enhanced surge immunity for input/output protection
Locksafe optimized voltages provide long-term lock protection
OutSmart Visual LED notification (12V/Green, 24V/Blue)
Network ready with optional LifeSafety Power NetLink® module
- Monitor power supply and battery in NetLink dashboard
- Remote test batteries
Lifetime Warranty LifeSafety Power’s quality commitment

1 x FPG100 100W Total Output, Universal Input, AC Fault and System Fault form C contacts may be triggered by low/no battery, short to earth ground, power supply failure, or blown fuse
1 x B100 Terminal block output is Class 2 power limited and jumper selectable for either a fixed 12VDC or an adjustable range between 5-18VDC at 4 amps maximum current
1 x C4 (4 Relay Lock Outputs) 3A fused outputs, programmable for failsafe/failsecure, FAI, NC/NO input, voltage or dry output per zone. Dual buss voltage selection by zone, OutSmart dual color LEDs
1 x D8P (8 Auxiliary Outputs) 2.5A Class 2 Power Limited Outputs, dual buss voltage selection by zone, OutSmart dual color LEDs

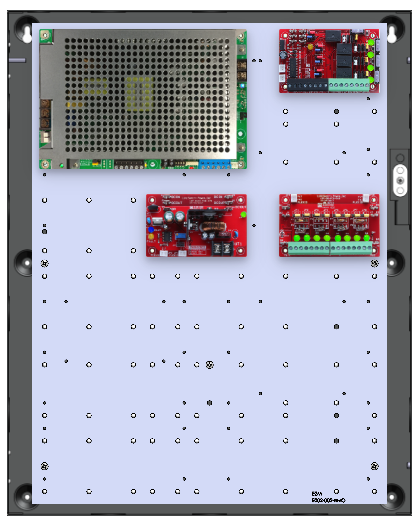

E2M Enclosure Size: 20.0H x 16.0W x 4.5D in (50.80 x 40.64 x 11.43 cm)
- Enclosure E2
- Backplate E2M
System Weight 16.50 lbs (7.48kg)

Weight	20 lbs
