Name: LifeSafetyPower FPG100/200-3D8P3M8NLXE12M Mercury Unified Power Systems 300W Dual Voltage, Universal 24 Managed Lock Outputs 24 Auxiliary Outputs
SKU: FPG100/200-3D8P3M8NLXE12M
Availability: InStock

Mercury Unified Power Systems combine FlexPower power modules alongside access control hardware in one compact and secure UL listed solution. Unified Power features include:

Built in Fire Alarm disconnect unlocks doors on a fire alarm
Low battery cutoff protects batteries from deep discharge
Dedicated fast charger prolongs battery life
Enhanced surge immunity for input/output protection
Locksafe optimized voltages provide long-term lock protection
OutSmart Visual LED notification (12V/Green, 24V/Blue)
Network ready with optional LifeSafety Power NetLink® module
- Monitor power supply and battery in NetLink dashboard
- Remote test batteries
Lifetime Warranty LifeSafety Power’s quality commitment

1 x FPG100, 1 x FPG200 300W Total Output, Universal Input, AC Fault and System Fault form C contacts may be triggered by low/no battery, short to earth ground, power supply failure, or blown fuse
3 x D8P (24 Auxiliary Outputs) 2.5A Class 2 Power Limited Outputs, dual buss voltage selection by zone, OutSmart dual color LEDs
3 x M8 (24 Managed Lock Outputs) 3A fused outputs, programmable for failsafe/failsecure, remote power cycle, monitor voltage and current on each output, programmable limits, dual buss voltage selection by zone, cycle count by zone, bi-color output LEDs verify voltage setting
1 x NLX NetLink Module Provides remote monitoring of power supply and battery set, remote battery testing, temperature monitoring, tamper switch monitoring, email/SNMP alerts on faults, RS485 port for Distributed Power Monitoring (DPM), compatible with MSM Multi-site Management software

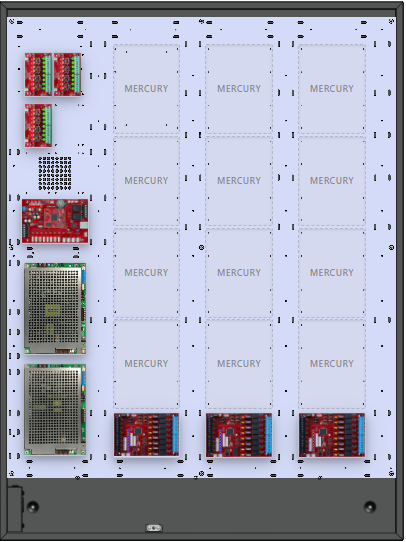

E12M Enclosure Size: 48.0H x 36.0W x 8.5D in (121.92 x 91.44 x 21.59 cm)
- Enclosure E12 Enclosure with no backplate
- Backplate E12M Backplate mounting for LP1502, LP4502, LP2500, MR52, MR16IN/OUT
System Weight 112.65 lbs (51.10kg)

Weight	120 lbs
