LifeSafetyPower FPG100/200-2F8P2M8PNL4E8M2/P16-A Mercury ProWire Power Systems 300W Dual Voltage, Universal 16 Managed Lock Outputs
$4,662.79
Mercury ProWire Power Systems combine FlexPower modules alongside access control hardware in one compact and secure UL listed solution. ProWire systems are prewired for power to the access control modules, faults, tamper switch, lock control wiring (where applicable) and communication. ProWire features include:
- Built in Fire Alarm disconnect unlocks doors on a fire alarm
- Low battery cutoff protects batteries from deep discharge
- Dedicated fast charger prolongs battery life
- Enhanced surge immunity for input/output protection
- Locksafe optimized voltages provide long-term lock protection
- OutSmart Visual LED notification (12V/Green, 24V/Blue)
- Network ready with optional LifeSafety Power NetLink® module
- Monitor power supply and battery in NetLink dashboard
- Remote test batteries
- Lifetime Warranty LifeSafety Power’s quality commitment
- 1 x FPG100, 1 x FPG200 300W Total Output, Universal Input, AC Fault and System Fault form C contacts may be triggered by low/no battery, short to earth ground, power supply failure, or blown fuse
- 2 x F8P (16 FAI Controlled Outputs) 2.5A Class 2 power limited outputs, each output programmable for constant output, enable on FAI, or disable on FAI. Dual buss voltage selection by zone, OutSmart dual color LEDs
- 2 x M8P (16 Managed Lock Outputs) 2.5A Class 2 power limited outputs, programmable for failsafe/failsecure, remote power cycle, monitor voltage and current on each output, programmable limits, dual buss voltage selection by zone, cycle count by zone, bi-color output LEDs verify voltage setting
- 1 x NL4 NetLink Module Provides remote monitoring of power supply and battery set, remote battery testing, temperature monitoring, tamper switch monitoring, email/SNMP alerts on faults, compatible with MSM Enterprise
- E8M2/W16-A Enclosure Size: 36.0H x 30.0W x 6.5D in (91.44 x 76.20 x 16.51 cm)
- Enclosure E8 E8 enclosure size 36H x 30W x 6.5D
- Backplate E8M2 Backplate mounting for LP1502, LP4502, LP2500, MR52, MR16IN/OUT

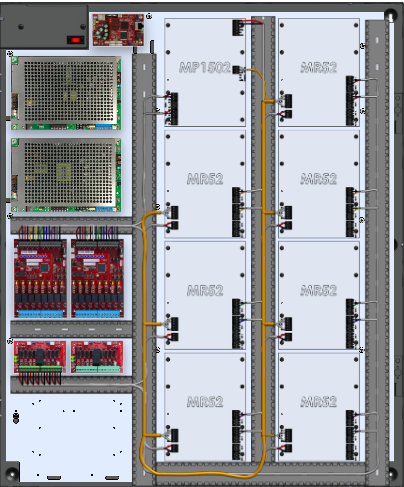

- ProWire E8M2/W16-A Prewired for 16 Doors, 1xLP1502, 7xMR52
- Routing Kit Panduit, E8M2
- LED Light Kit
- System Weight 60.70 lbs (27.53kg)
| Weight | 70 lbs |
|---|
