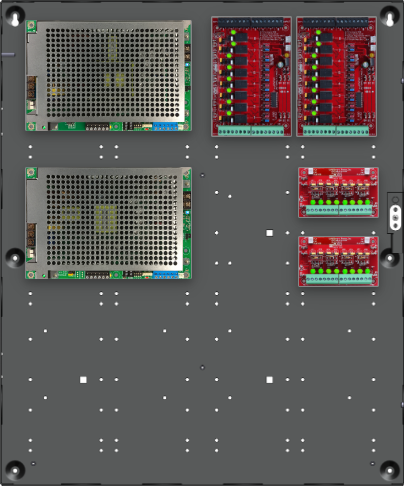

Name: LifeSafetyPower FPG100/200-2C8P2D8PE4 Standard Power Systems 300W Dual Voltage, Universal 16 Relay Lock Outputs 16 Auxiliary Outputs
SKU: FPG100/200-2C8P2D8PE4
Availability: InStock

Standard Power Systems provide FlexPower power modules in a secure UL listed solution. Standard Power features include:

Built in Fire Alarm disconnect unlocks doors on a fire alarm
Low battery cutoff protects batteries from deep discharge
Dedicated fast charger prolongs battery life
Enhanced surge immunity for input/output protection
Locksafe optimized voltages provide long-term lock protection
OutSmart Visual LED notification (12V/Green, 24V/Blue)
Network ready with optional LifeSafety Power NetLink® module
- Monitor power supply and battery in NetLink dashboard
- Remote test batteries
Lifetime Warranty LifeSafety Power’s quality commitment

1 x FPG100, 1 x FPG200 300W Total Output, Universal Input, AC Fault and System Fault form C contacts may be triggered by low/no battery, short to earth ground, power supply failure, or blown fuse
2 x C8P (16 Relay Lock Outputs) 2.5A Class 2 power limited outputs, programmable for failsafe/failsecure, FAI, NC/NO input, voltage or dry output per zone. Dual buss voltage selection by zone, OutSmart dual color LEDs
2 x D8P (16 Auxiliary Outputs) 2.5A Class 2 Power Limited Outputs, dual buss voltage selection by zone, OutSmart dual color LEDs
E4 Enclosure Size: 24.0H x 20.0W x 6.5D in (60.96 x 50.80 x 16.51 cm)
- Enclosure E4

System Weight 26.35 lbs (11.95kg)

Electrical Ratings

Parameter

Rating

Input Voltage

Universal Input, 100-240 VAC,50/60Hz

Input Power (max)

428W

Output Power

300W

Relay Lock Outputs

16 @ 2.5A Class 2 Power Limited

Auxiliary Outputs

16 @ 2.5A Class 2 Power Limited

Maximum Charge Current

FPG100: 1.1A, 40AH maximum

FPG200: 1.6A, 80AH maximum

Low Power Disconnect

at 70% of battery voltage

Systems BTU/Hr

170 BTU/Hr

Operating Temperature

32 to 122F (0 to +50C)

Efficiency

85% 120VAC 60Hz In, Full Load

Agency Approvals

FCC Part 15, Subpart B IEC 62368-1:2014, EN 55032:2015, EN6100-3-2:2014, EN6100-3-3:2013, EN55024:2010+A1:2015, BIS IS13252(Part 1):2010, REACH 209, ROHS 3, RCM AS/NZS 4417.1, SAA AS/NZS 62368.1:2018, PSE J62368-1(2020), PSE J55032(H29)

Weight	30 lbs
