Power Systems combine FlexPower power modules alongside access control hardware in one compact and secure UL listed solution. Unified Power features include:
- Standard Built in Fire Alarm disconnect unlocks doors on a fire alarm
- Low battery cutoff protects batteries from deep discharge
- Dedicated fast charger prolongs battery life
- Enhanced surge immunity for input/output protection
- Locksafe optimized voltages provide long-term lock protection
- OutSmart Visual LED notification (12V/Green, 24V/Blue)
- Network ready with optional LifeSafety Power NetLink® module
- Monitor power supply and battery in NetLink dashboard
- Remote test batteries
- Lifetime Warranty LifeSafety Power’s quality commitment
- E4LSP Enclosure Size: 24.0H x 20.0W x 6.5D in (60.96 x 50.80 x 16.51 cm)
- Enclosure E4

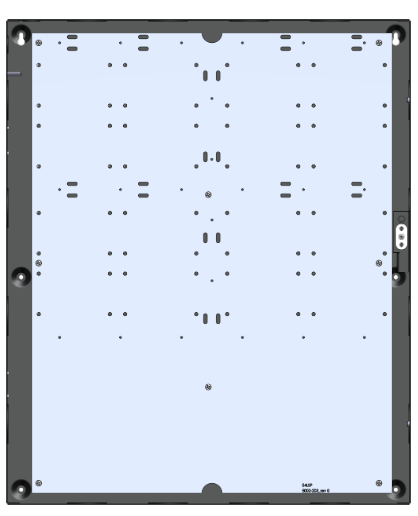

- Backplate E4LSP
- System Weight 25.80 lbs (11.70kg)
Electrical RatingsParameterRatingInput Voltage120 VAC, 50/60HzInput Power (max)0WOutput Power0WMaximum Charge CurrentLow Power Disconnectat 70% of battery voltageSystems BTU/Hr0 BTU/HrOperating Temperature32 to 122F (0 to +50C)Efficiency0% 120VAC 60Hz In, Full LoadAgency ApprovalsUL294, UL1076, ULC S318, ULC S319, CSA C22.2 #107.1, FCC Part 15, Subpart B, CSFM IEC 62368-1:2014, EN 55032:2015, EN6100-3-2:2014, EN6100-3-3:2013, EN55024:2010+A1:2015, BIS IS13252(Part 1):2010, NOM-001-SCFI-1933, REACH 209, ROHS 3, RCM AS/NZS 4417.1, SAA AS/NZS 62368.1:2018
| Weight | 30 lbs |
|---|
