Name: LifeSafetyPower BX75-C4D8PE1M Mercury Unified Power Systems 75W Single Voltage, PoE 4 Relay Lock Outputs 8 Auxiliary Outputs
SKU: BX75-C4D8PE1M
Availability: InStock

Mercury Unified Power Systems combine FlexPower power modules alongside access control hardware in one compact and secure UL listed solution. Unified Power features include:

Built in Fire Alarm disconnect unlocks doors on a fire alarm
Low battery cutoff protects batteries from deep discharge
Dedicated fast charger prolongs battery life
Enhanced surge immunity for input/output protection
Locksafe optimized voltages provide long-term lock protection
OutSmart Visual LED notification (12V/Green, 24V/Blue)
Network ready with optional LifeSafety Power NetLink® module
- Monitor power supply and battery in NetLink dashboard
- Remote test batteries
Lifetime Warranty LifeSafety Power’s quality commitment

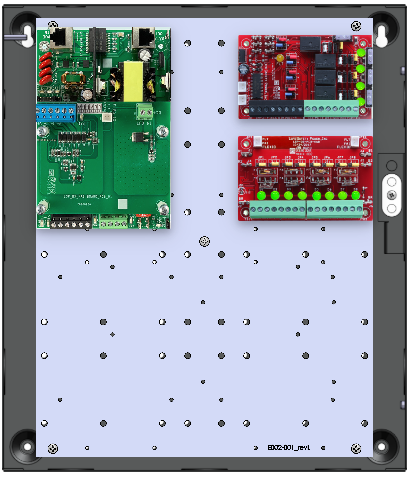

System Details

1 x BX75 75W Total Output, PoE Input, AC Fault and System Fault form C contacts may be triggered by low/no battery, short to earth ground, power supply failure, or blown fuse
1 x C4 (4 Relay Lock Outputs) 3A fused outputs, programmable for failsafe/failsecure, FAI, NC/NO input, voltage or dry output per zone. Dual buss voltage selection by zone, OutSmart dual color LEDs
1 x D8P (8 Auxiliary Outputs) 2.5A Class 2 Power Limited Outputs, dual buss voltage selection by zone, OutSmart dual color LEDs
E1M Enclosure Size: 14.0H x 12.0W x 4.5D in (35.56 x 30.48 x 11.43 cm)
- Enclosure E1
- Backplate E1M Backplate mounting for LP1502, LP4502, LP2500, MR52, MR16IN/OUT

System Weight 10.70 lbs (4.85kg)

Electrical Ratings

Parameter

Rating

Input Voltage

PoE Input, 50/60Hz

Input Power (max)

90W

Output Power

75W

Relay Lock Outputs

4 @ 3A Fused

Auxiliary Outputs

8 @ 2.5A Class 2 Power Limited

Maximum Charge Current

BX75: 1.3A, 40AH maximum

Low Power Disconnect

at 70% of battery voltage

Systems BTU/Hr

41 BTU/Hr

Operating Temperature

32 to 122F (0 to +50C)

Efficiency

88% 120VAC 60Hz In, Full Load

Agency Approvals

UL294, UL1076, ULC S318, ULC S319, CSA C22.2 #107.1, FCC Part 15, Subpart B, CSFM IEC 62368-1:2014, EN 55032:2015, EN6100-3-2:2014, EN6100-3-3:2013, EN55024:2010+A1:2015, BIS IS13252(Part 1):2010, NOM-001-SCFI-1933, REACH 209, ROHS 3, RCM AS/NZS 4417.1, SAA AS/NZS 62368.1:2018

Weight	12 lbs
